WP-G BRASS IP65 PG16

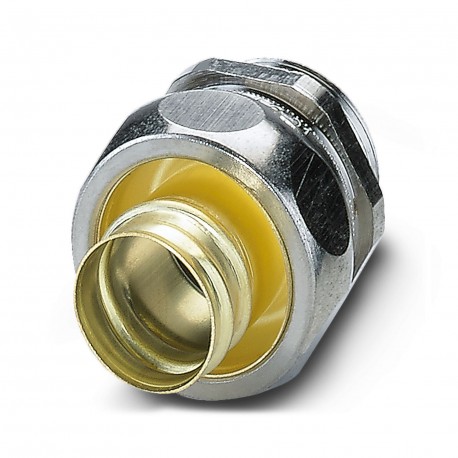

WP-G BRASS IP65 PG16 3241054 PHOENIX CONTACT Screw connection
$19.77USD
555 in stock
Key Specifications
:29 mm
Type:Outer thread
Width:31 mm
Height:30 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 29 mm | |
| Type | Outer thread |
| Width | 31 mm |
| Height | 30 mm |
| Length | 30 mm |
| Material | Brass, nickel-plated |
| Components | halogen-free |
| Thread type | Pg |
| Wrench size | 27 mm |
| Cable outlet | straight |
| Product type | Corrugated pipe screw connection |
| Article revision | 00 |
| Outside diameter | 21 mm |
| Internal diameter | 15.5 mm |
| Degree of protection | IP65 |
| Wrench size for mounting | 27 mm |
| Type of the screw connection | Conduit adapter |
| Material for screw connection | Brass, nickel-plated |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Product Description
Brass cable gland with Pg thread, IP65 degree of protection
