WMTB-AL (D30)
WMTB-AL (D30) 0830804 PHOENIX CONTACT Cable marker
$0.00USD
4259 in stock
Key Specifications
GTIN:4046356780780
Note:Made to Order (non-returnable)
Orderkey:0830804
Catalog page:Page 201 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356780780 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0830804 |
| Catalog page | Page 201 (C-3-2017) |
| Packing unit | 90 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 76169990 |
| (Ambient conditions) | 5146662 BLUEMARK CLED-FLUID-CARTR. |
| Minimum order quantity | 90 pc |
| Type (Ambient conditions) | Roll |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | aluminum color |
| Cycles (Ambient conditions) | 2 |
| Device (Ambient conditions) | 5147999 BLUEMARK CLED |
| Result (Ambient conditions) | Test passed |
| Material (Ambient conditions) | Aluminum |
| Components (Ambient conditions) | free from silicone, halogen, and cadmium |
| Width (a) (Key Commercial Data) | 30 mm |
| Length (b) (Key Commercial Data) | 30 mm |
| Printability (Ambient conditions) | UV LED technology |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Test duration (Ambient conditions) | 96 h |
| Weight per Piece (excluding packing) | 1.490 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Min. cross section (Ambient conditions) | 4 mm² |
| Marking mounting type (Ambient conditions) | Assembly with cable binders |
| Recommended storage conditions (Dimensions) | 5°C to 25°C |
| Material thickness (g) (Key Commercial Data) | 0.80 mm |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | following DIN 50018:2013-05 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description

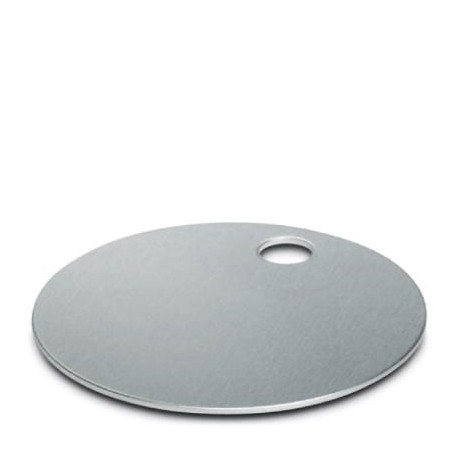

Cable marker, Aluminum plate, aluminum color, unlabeled, labelable with: BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, mounting class: Mounting with cable tie, cable diameter: > 2.4 mm, useful surface:
