WMTB (35X15)R

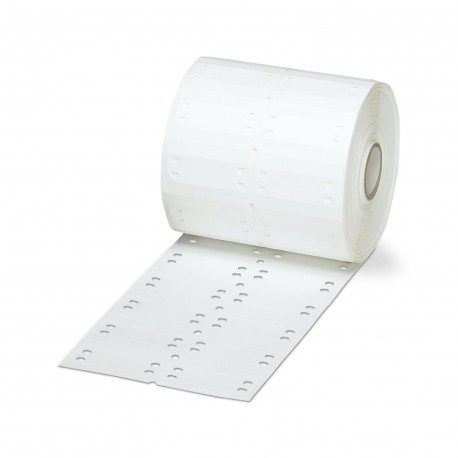

WMTB (35X15)R 0817316 PHOENIX CONTACT Cable marker
$0.00USD
3779 in stock
Key Specifications
:6 mm ... 136 mm
Type:Roll
Color:white (RAL 9010)
Width:15 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 6 mm ... 136 mm | |
| Type | Roll |
| Color | white (RAL 9010) |
| Width | 15 mm |
| Cycles | 2 |
| Length | 48 mm |
| Result | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
| Material | Polyester |
| Procedure | Method B |
| Components | free from silicone and halogen |
| Shelf life | 24 months |
| Product type | Conductor marking |
| Requirements | ≥ 5 N |
| Foil strength | 175 µm |
| Mounting type | Assembly with cable ties |
| Specification | EN ISO 1518-1:2023 (following) |
| Test duration | 96 h |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 03 |
| Outside diameter | 0.5 mm ... 136 mm |
| Text field width | 35.00 mm |
| Text field height | 15.00 mm |
| External cable diameter | ≥ 6.00 mm |
| Identification technology | Thermal transfer for rolls |
| Diesel[CAS No. 68476-34-6] | Test passed |
| Isopropyl[CAS No. 67-63-0] | Test passed |
| Rating 150 °C (180 °C) | Test passed |
| n-Hexane[CAS No. 110-54-3] | Test passed |
| Number of individual labels | 1700 |
| Ambient temperature (operation) | -40 °C ... 150 °C |
| Ethanol (99 %)[CAS No. 64-17-5] | Test passed |
| Number of individual labels per row | 2 |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Water + Petroleum ether[CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l[CAS No. 1310-73-2] | Test passed |
| Recommended ambient temperature (storage/transport) | 23 °C |
Product Description
Cable marker, Roll, white, unlabeled, labelable with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting class: Mounting with cable tie,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
