In Stock Hot Product
WMT (15X4)RL

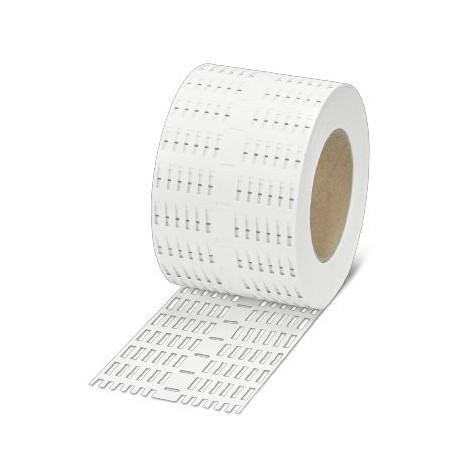

WMT (15X4)RL 1080099 PHOENIX CONTACT Cable marker, Roll, white, unlabeled, can be labeled with: THERMOMARK R..
$0.00USD
3048 in stock
Key Specifications
GTIN:4055626800769
Orderkey:1080099
Catalog page:Page 229 (C-3-2019)
Packing unit:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626800769 |
| Orderkey | 1080099 |
| Catalog page | Page 229 (C-3-2019) |
| Packing unit | 1 |
| UNSPSC 11 (ETIM) | 39121410 |
| ETIM 2.0 (eCl@ss) | EC000761 |
| ETIM 3.0 (eCl@ss) | EC000761 |
| ETIM 4.0 (eCl@ss) | EC001530 |
| ETIM 6.0 (eCl@ss) | EC001530 |
| ETIM 7.0 (eCl@ss) | EC001530 |
| UNSPSC 13.2 (ETIM) | 39131504 |
| UNSPSC 18.0 (ETIM) | 39131504 |
| UNSPSC 19.0 (ETIM) | 39131504 |
| UNSPSC 20.0 (ETIM) | 39131504 |
| UNSPSC 21.0 (ETIM) | 39131504 |
| UNSPSC 6.01 (ETIM) | 30211811 |
| UNSPSC 12.01 (ETIM) | 39121410 |
| Custom tariff number | 39269097 |
| UNSPSC 7.0901 (ETIM) | 39121410 |
| Type (Ambient conditions) | Roll |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Result (Ambient conditions) | Test passed |
| eCl@ss 9.0 (Classifications) | 27400401 |
| Material (Ambient conditions) | Polyester |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 4 mm |
| Length (b) (Key Commercial Data) | 15 mm |
| Foil strength (Ambient conditions) | 400 µm |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Cable diameter (Key Commercial Data) | 0.6 mm ... 45 mm |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Marking mounting type (Ambient conditions) | insert |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 10000 |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Result of wipe resistance test (Ambient conditions) | Test passed |
| Result of weather resistance test (Ambient conditions) | Test passed |
| Number of individual labels per row (Ambient conditions) | 10 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Cable marker, Roll, white, unlabeled, labelable with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting cl
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
