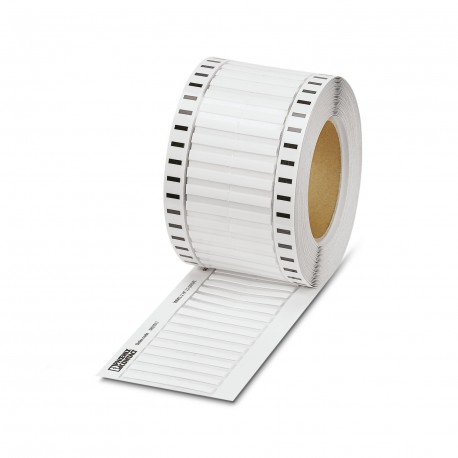

WMS-2 HF 3,2 (30X5)RL
WMS-2 HF 3,2 (30X5)RL 0801011 PHOENIX CONTACT Shrink sleeve
$0.00USD
3398 in stock
Key Specifications
:DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Type:Shrink sleeve
Color:white (RAL 9010)
Width:5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Type | Shrink sleeve |
| Color | white (RAL 9010) |
| Width | 5 mm |
| Cycles | 2 |
| Length | 30 mm |
| Result | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
| Material | Polyolefine |
| Components | halogen-free |
| Shelf life | 2 years |
| Shrink rate | 2:1 |
| Product type | Shrink sleeve |
| Requirements | ≥ 5 N |
| Climate level | AHT 1.0 S |
| Mounting type | slide-on |
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Test duration | 96 h |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 00 |
| Outside diameter | 1.5 mm ... 3.2 mm |
| Text field width | 30.00 mm |
| Text field height | 5.00 mm |
| Shrink temperature | > 90 °C |
| Area of application | Railway industry |
| Material information | The specified minimum wire diameter of the shrink sleeve refers to its use as a marking material and does not guarantee any insulation characteristics once shrunk.Depending on the processed material batch, as well as the storage and processing conditions, the maximum insertable wire diameter may be reduced. |
| Base element material | polyolefine |
| External cable diameter | 1.5 mm ... 3.2 mm |
| Identification technology | Thermal transfer for rolls |
| Diesel[CAS No. 68476-34-6] | Test passed |
| Isopropyl[CAS No. 67-63-0] | Test passed |
| Rating 125 °C (150 °C) | Test passed |
| n-Hexane[CAS No. 110-54-3] | Test passed |
| Number of individual labels | 2000 |
| Ambient temperature (operation) | -30 °C ... 105 °C |
| Acetone (99 %)[CAS No. 67-64-1] | Test passed |
| Ethanol (99 %)[CAS No. 64-17-5] | Test passed |
| Number of individual labels per row | 2 |
| Recommended humidity (storage/transport) | 45 % ... 55 % (Storage in a dry and dark place in the original packaging is recommended) |
| Water + Petroleum ether[CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l[CAS No. 1310-73-2] | Test passed |
| Recommended ambient temperature (storage/transport) | 10 °C ... 25 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Product Description
Heat shrink tubing, roller, white, unlabeled, 2:1 shrinkage rate, labelable with: THERMOMARK ROLL, THERMOMARK X.1, perforated, mounting type: insertion
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
