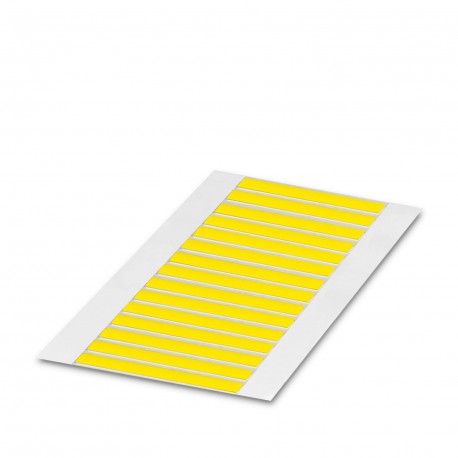

WMS-2 HF 2,4 (15X4)RL YE CUS
WMS-2 HF 2,4 (15X4)RL YE CUS 0833209 PHOENIX CONTACT Shrink sleeve
$0.00USD
4404 in stock
Key Specifications
:DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Type:Shrink sleeve
Color:yellow (RAL 1018)
Width:4 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Type | Shrink sleeve |
| Color | yellow (RAL 1018) |
| Width | 4 mm |
| Cycles | 2 |
| Length | 15 mm |
| Result | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
| Material | Polyolefine |
| Printing | user-defined |
| Procedure | Method B |
| Components | halogen-free |
| Shelf life | 2 years |
| Shrink rate | 2:1 |
| Product type | Shrink sleeve printed |
| Requirements | ≥ 5 N |
| Mounting type | slide-on |
| Specification | EN ISO 1518-1:2023 (following) |
| Test duration | 96 h |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 01 |
| Outside diameter | 1.2 mm ... 2.4 mm |
| Shrink temperature | > 90 °C |
| Area of application | Railway industry |
| Base element material | polyolefine |
| External cable diameter | 1.2 mm ... 2.4 mm |
| Identification technology | Thermal transfer for rolls |
| Diesel[CAS No. 68476-34-6] | Test passed |
| Isopropyl[CAS No. 67-63-0] | Test passed |
| Rating 100 °C (121 °C) | Test passed |
| Ambient temperature (operation) | -30 °C ... 105 °C |
| Ethanol (99 %)[CAS No. 64-17-5] | Test passed |
| Recommended humidity (storage/transport) | 45 % ... 55 % (Storage in a dry and dark place in the original packaging is recommended) |
| Water + Petroleum ether[CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l[CAS No. 1310-73-2] | Test passed |
| Recommended ambient temperature (storage/transport) | 10 °C ... 25 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Product Description
Heat shrink tubing, Roll, yellow: custom, cut, mounting class: slip, cable diameter range: 1.2 ... 2.4 mm, usable surface: 15 x 4 mm
