In Stock Hot Product
WMS 2,4 (15X4)R CUS

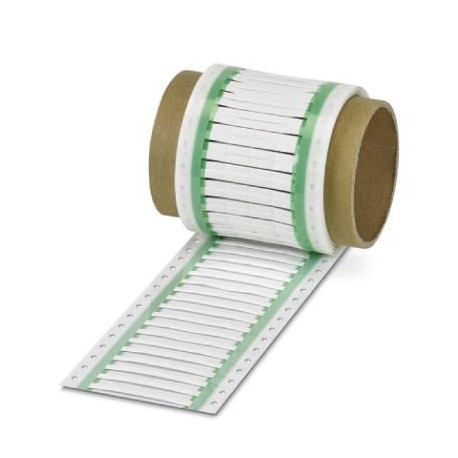

WMS 2,4 (15X4)R CUS 0800752 PHOENIX CONTACT Shrink sleeve
$0.00USD
3763 in stock
Key Specifications
GTIN:4046356628846
Note:Made to Order (non-returnable)
Orderkey:0800752
Catalog page:Page 202 (C-5-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356628846 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0800752 |
| Catalog page | Page 202 (C-5-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 49119900 |
| Type (Ambient conditions) | Shrink sleeve |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Material (Ambient conditions) | Polyolefine |
| Printing (Ambient conditions) | user-defined |
| Components (Ambient conditions) | halogen-free |
| Width (a) (Key Commercial Data) | 4 mm |
| Length (b) (Key Commercial Data) | 15 mm |
| Cable diameter (Key Commercial Data) | 0.8 mm ... 2.4 mm |
| Weight per Piece (excluding packing) | 0.580 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| China RoHS (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Base element material (Ambient conditions) | polyolefine |
| Connection in acc. with standard (General) | CSA |
| Marking mounting type (Ambient conditions) | slide on |
| Ambient temperature (operation) (Dimensions) | -55 °C ... 135 °C |
| Number of individual labels per row (Ambient conditions) | 4 |
Product Description
Heat shrink tubing, Roll, white: custom, Perforated, mounting class: slip, cable diameter range: 0.8 ... 2.4 mm, usable surface: 15 x 4 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
