WIL-BLADE-INTELLIGENCE

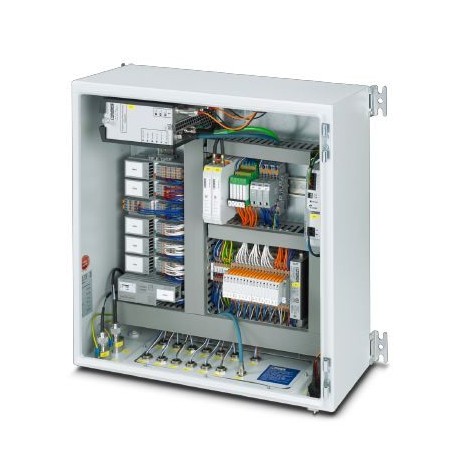

WIL-BLADE-INTELLIGENCE 1093550 PHOENIX CONTACT Modular solution to monitor the rotor blades of wind turbine ..
$0.00USD
4314 in stock
Key Specifications
GTIN:4055626911557
Orderkey:1093550
Packing unit:1
Weight (Note):16.8 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626911557 |
| Orderkey | 1093550 |
| Packing unit | 1 |
| Weight (Note) | 16.8 kg |
| ETIM 4.0 (eCl@ss) | EC000816 |
| ETIM 5.0 (eCl@ss) | EC000268 |
| ETIM 6.0 (eCl@ss) | EC000268 |
| ETIM 7.0 (eCl@ss) | EC000268 |
| Custom tariff number | 85371098 |
| (Ambient conditions) | 554 mm x 554 mm x 225 mm (With wall mounting brackets and connections) |
| Protection class (Note) | I |
| RAL color (General data) | 7035 |
| Nominal power (Dimensions) | 50 W |
| Degree of protection (Note) | IP55 |
| Control voltage (Dimensions) | 24 V DC |
| Frequency range (Dimensions) | 863 MHz ... 870 MHz (typical: 868 MHz) |
| eCl@ss 5.1 (Classifications) | 27371890 |
| eCl@ss 7.0 (Classifications) | 27142422 |
| eCl@ss 8.0 (Classifications) | 27142422 |
| eCl@ss 9.0 (Classifications) | 27142422 |
| Housing material (General data) | Sheet steel |
| Nominal current IN (Dimensions) | 1.1 A |
| Nominal voltage UN (Dimensions) | 230 V AC (50 Hz) |
| Air pressure (operation) (Housing) | 70 hPa ... 106 hPa (up to 3000 m above mean sea level) |
| Recommended backup fuse (Dimensions) | 6 A (Characteristic B, 1-pos.) |
| Ambient temperature (operation) (Housing) | 0 °C ... 40 °C |
| Permissible humidity (operation) (Housing) | ≤ 95 % (at 25 °C, non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Ambient temperature (storage/transport) (Housing) | 0 °C ... 40 °C |
| Outer dimensions: width, height, depth (Ambient conditions) | 496 mm x 500 mm x 210 mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
