In Stock Hot Product
VZA22P2BAA

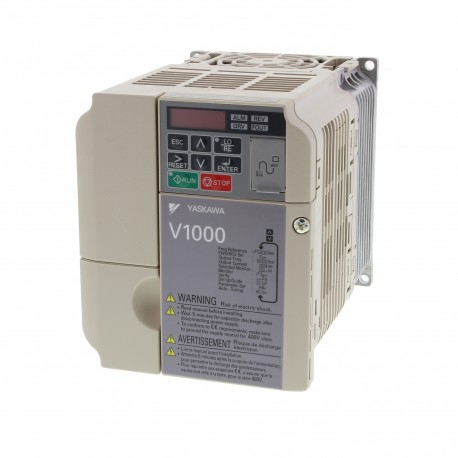

VZA22P2BAA 3G3Z1376F 234270 OMRON V1000 Three Phase 200-240 VAC (11.0/12.0)Amp (2.2/3.0)Kw Vector
$0.00USD
3100 in stock
Key Specifications
():SI-P3/V
Depth:137.5 mm
Width:108 mm
Height:128 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | SI-P3/V |
| Depth | 137.5 mm |
| Width | 108 mm |
| Height | 128 mm |
| Weight | 1400 g |
| Finless type | |
| Built in EMC filter | |
| Drive supply voltage | 230 V three phase |
| Communication port(s) | MODBUS Slave, Serial RS-422, Serial RS-485 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Inverter control method | Open loop V/f, Open loop vector |
| Degree of protection (IP) | IP20 |
| Max. motor output at constant torque (HD) | 2.2 kW |
| Max. motor output at variable torque (ND) | 3 kW |
Product Description
V1000 inverter, 3~ 200 VAC, 2.2 W, 11 A, sensorless vector, max. output freq. 400Hz
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
