VS-SI-EB-EMV-2

Parameter	Value
GTIN	4046356029865
Orderkey	1656495
Catalog page	Page 715 (C-2-2017)
Packing unit	1 pc
Country of origin	DE (Germany)
Custom tariff number	85389099
Note (Ambient conditions)	With lockable pressure lock
Type (Ambient conditions)	For 2 front plates
Color (Ambient conditions)	transparent
Width (Key Commercial Data)	130 mm
(Standards and Regulations)	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Height (Key Commercial Data)	35 mm
Length (Key Commercial Data)	120 mm
Weight per Piece (excluding packing)	402.400 g
Housing material (Ambient conditions)	Zinc alloy
China RoHS (Standards and Regulations)	Environmentally Friendly Use Period = 50
REACh SVHC (Standards and Regulations)	Lead 7439-92-1
Assembly instructions (Ambient conditions)	Suitable for panel thicknesses 1 mm ... 5 mm
Ambient temperature (operation) (Dimensions)	-10 °C ... 60 °C
Housing surface material (Ambient conditions)	Nickel-plated
Flammability rating according to UL 94 (General)	V0
Degree of protection of housing (IP) (Dimensions)	IP65
Width of the assembly cutout (Key Commercial Data)	117 mm
Length of the assembly cutout (Key Commercial Data)	91 mm
Flammability rating according to UL 94 (Ambient conditions)	V0

Recessed frame, for 2 faceplates or sockets, metal frame, nickel-plated matte, electroconductor, transparent cover

Technical specifications and performance data

Installation and operation guide

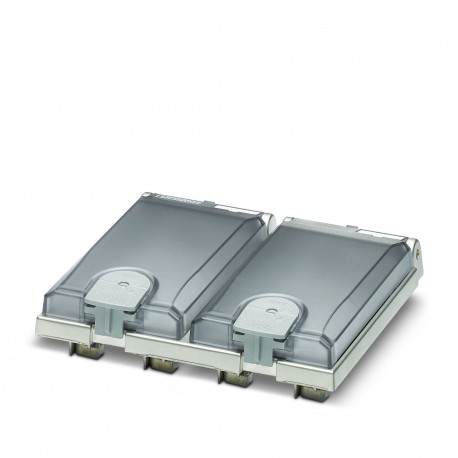

VS-SI-EB-EMV-2 1656495 PHOENIX CONTACT Mounting frame
