VS-OE-OE-94B-100,0

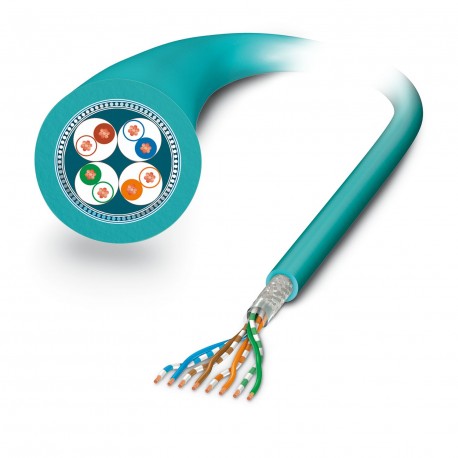

VS-OE-OE-94B-100,0 1416567 PHOENIX CONTACT Network cable
$0.00USD
4074 in stock
Key Specifications
GTIN:4046356475327
(Cable):No hazardous substances above threshold values
Orderkey:1416567
Catalog page:Page 397 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356475327 |
| (Cable) | No hazardous substances above threshold values |
| Orderkey | 1416567 |
| Catalog page | Page 397 (C-2-2017) |
| Packing unit | 1 pc |
| (General data) | -20 °C ... 80 °C (cable, flexible installation) |
| Country of origin | DE (Germany) |
| China RoHS (Cable) | Environmentally friendly use period: unlimited = EFUP-e |
| Custom tariff number | 85444995 |
| Shielding (General data) | Aluminum-coated foil, tinned copper braided shield |
| Cable type (General data) | Ethernet, flexible, CAT5 |
| Attenuation (General data) | 3.2 dB (with 1 MHz) |
| Wire colors (General data) | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
| Cable weight (General data) | 47 kg/km |
| Halogen-free (General data) | according to IEC 60754-1 |
| UL AWM style (General data) | 20963 (80°C/30 V) |
| Overall twist (General data) | 4 pairs for core |
| Twisted pairs (General data) | 2 cores to the pair |
| Cable capacity (General data) | 48 nF/km (at 1 kHz) |
| Signal runtime (General data) | 5.3 ns/m |
| Wave impedance (General data) | 100 Ω ±5 Ω (at 100 MHz) |
| AWG signal line (General data) | 26 |
| Cable structure (General data) | 4x2xAWG26/7; SF/UTP |
| Loop resistance (General data) | ≤ 290.00 Ω/km |
| Flame resistance (General data) | according to IEC 60332-1-2 |
| Return loss (RL) (General data) | 23 dB (at 4 МHz) |
| Number of positions (Dimensions) | 8 |
| Resistance to oil (General data) | according to EN 60811-2-1 |
| Conductor material (General data) | Bare Cu litz wires |
| Signal type/category (Dimensions) | Ethernet CAT5 (IEC 11801:2002), 1 Gbps |
| Coupling resistance (General data) | ≤ 100.00 mΩ/m (at 10 MHz) |
| Signal type/category (General data) | Ethernet CAT5 (IEC 11801), 1 Gbps |
| Tensile strength GRP (General data) | ≤ 100 N |
| Insulation resistance (General data) | ≥ 500 MΩ*km |
| Weight per Piece (excluding packing) | 4,046.000 g |
| External sheath, color (General data) | water blue RAL 5021 |
| Length of cable (Key Commercial Data) | 100 m |
| Nominal voltage, cable (General data) | ≤ 100 V |
| Outer sheath thickness (General data) | 1.05 mm |
| Outer sheath, material (General data) | PUR |
| Test voltage Core/Core (General data) | 700 V (50 Hz, 1 min.) |
| Conductor cross section (General data) | 4x 2x 0.14 mm² |
| Optical shield covering (General data) | 70 % |
| Test voltage Core/Shield (General data) | 700 V (50 Hz, 1 min.) |
| Cable type (abbreviation) (General data) | 94B |
| External cable diameter D (General data) | 6.4 mm ±0.2 mm |
| Material conductor insulation (General data) | Foamed PE |
| Ambient temperature (operation) (General data) | -40 °C ... 80 °C (cable, fixed installation) |
| Conductor structure signal line (General data) | 7x 0.16 mm |
| Ambient temperature (installation) (General data) | -20 °C ... 80 °C |
| Core diameter including insulation (General data) | 0.96 mm |
| Near end crosstalk attenuation (NEXT) (General data) | 71.3 dB (with 1 MHz) |
| Ambient temperature (storage/transport) (General data) | -20 °C ... 80 °C |
| Minimum bending radius, fixed installation (General data) | 4 x D |
| Minimum bending radius, flexible installation (General data) | 8 x D |
| Power-summated near end crosstalk attenuation (PSNEXT) (General data) | 62.3 dB (with 1 MHz) |
Product Description
Network cable, CAT5 Ethernet (1 GBit/s), 8-pole halogen-free, shielded, free cable end, to free cable end, cable length: 100 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
