In Stock Hot Product
VS-FP-SD-GB-RJ456A-BUBU
VS-FP-SD-GB-RJ456A-BUBU 1054544 PHOENIX CONTACT Front plate
$0.00USD
4961 in stock
Key Specifications
GTIN:4055626689296
Orderkey:1054544
Packing unit:1 pc
Country of origin:HU (Hungary)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626689296 |
| Orderkey | 1054544 |
| Packing unit | 1 pc |
| Country of origin | HU (Hungary) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | PC (Socket, labeling field) |
| Height (Ambient conditions) | 43 mm |
| (Mechanical characteristics) | IP00 (Back side) |
| Material (Ambient conditions) | Zinc die-cast, nickel-plated (RJ45) |
| Rated current (Material data) | 13 A (Socket) |
| Transmission speed (Material data) | 10 Gbps (Class EA (ISO/IEC 11801:2002), (EN 50173-1)) |
| Weight per Piece (excluding packing) | 101.200 g |
| Housing material (Ambient conditions) | PBT |
| Rated voltage (III/3) (Material data) | 250 V (Socket) |
| Connection method (Key Commercial Data) | Screw connection |
| Number of positions (Key Commercial Data) | 8 |
| Contact insert design (Key Commercial Data) | with 1x RJ45 Socket/socket, Cat 6, classEA (ISO/IEC 11801:2002), (EN 50173-1) |
| Conductor cross section (Key Commercial Data) | 4 mm² (Screw connection without wire protection) |
| Degree of protection (Mechanical characteristics) | IP20 (Front) |
| Insertion/withdrawal cycles (Key Commercial Data) | >= 750 (RJ45) |
| Connection cross section AWG (Key Commercial Data) | 12 |
| Ambient temperature (operation) (Mechanical characteristics) | -5 °C ... 50 °C |
Product Description

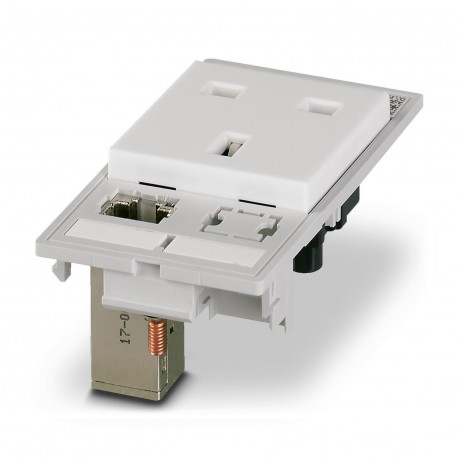

Grounding socket, plastic, for England, incl. RJ45 Gender Changer (female/female connector, shielded), CAT6A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
