VS-EC-MSDB SH SCO

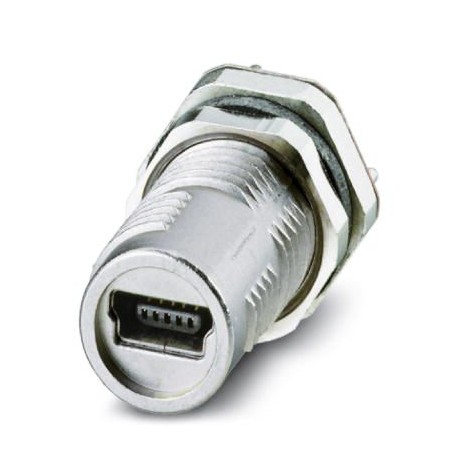

VS-EC-MSDB SH SCO 1440711 PHOENIX CONTACT Panel feed-through
$16.61USD
632 in stock
Key Specifications
GTIN:4046356554053
Orderkey:1440711
Catalog page:Page 205 (C-2-2013)
Packing unit:20 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356554053 |
| Orderkey | 1440711 |
| Catalog page | Page 205 (C-2-2013) |
| Packing unit | 20 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 20 pc |
| Contact material (General) | Cu alloy |
| Material, knurls (General) | Zinc die-cast, nickel-plated |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Contact surface material (General) | Gold over nickel |
| Mounting type (Ambient conditions) | Rear mounting M12 x 1 With locking nut |
| Rated voltage (Ambient conditions) | 30 V |
| Weight per Piece (excluding packing) | 11.180 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | Solder pins |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Number of positions (Ambient conditions) | 4 |
| Degree of protection (Key Commercial Data) | IP67 |
| Rated current at 40°C (Ambient conditions) | 1 A |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 100 |
| Flammability rating according to UL 94 (Material) | V0 |
| Ambient temperature (operation) (Key Commercial Data) | -25 °C ... 85 °C (Plug / socket) |
Product Description
Conect. plug. to be apar. front wall, 4-pole, Connecting female, straight, M12-SPEEDCON, Front wall mounting, M12 x 1, Welding pins, Alternative product according to RoHS II without exception 6c (Pb<
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
