VS-25-ST-DSUB-HD-ER

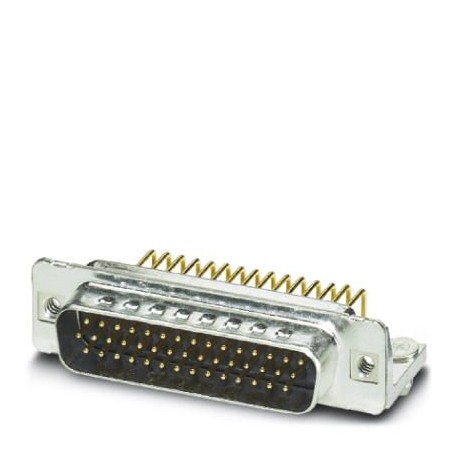

VS-25-ST-DSUB-HD-ER 1655218 PHOENIX CONTACT D-SUB contact insert
$36.29USD
323 in stock
Key Specifications
GTIN:4046356029155
Note:Made to Order (non-returnable)
Orderkey:1655218
Catalog page:Page 211 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356029155 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1655218 |
| Catalog page | Page 211 (C-2-2013) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 10 pc |
| Type (Key Commercial Data) | 25 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Test voltage (Material data) | 1000 V |
| Rated current (Material data) | 3 A (at 20 °C) |
| Degree of pollution (Material data) | 2 |
| Mounting type (Key Commercial Data) | Threads and solder pins |
| Number of positions (Material data) | 44 |
| Overvoltage category (Material data) | III |
| Weight per Piece (excluding packing) | 19.870 g |
| Contact material (Ambient conditions) | Copper alloy |
| Rated voltage (III/3) (Material data) | 60 V |
| Size of housing (Key Commercial Data) | 3 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection method (Key Commercial Data) | Solder connection |
| Connection profile (Key Commercial Data) | 25-pos. D-SUB |
| Number of positions (Key Commercial Data) | 44 |
| Contact carrier material (Ambient conditions) | Glass-fiber reinforced thermoplastics, UL 94 V0 |
| Contact surface material (Ambient conditions) | Au/Sn |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 50 |
| Insertion force per signal contact (Key Commercial Data) | ≤ 3.40 N |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -55 °C ... 105 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
D-SUB Contact Insert, Wrap Size 3, with 44 Signal Contacts, Male Contact Type, for Printed Circuit Board Mounting, Elbowing, 4-40 UNC Thread Fastening and Solder Pins, for VS-25 Recessed Frame-...
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
