In Stock Hot Product
VS-25-ST-DSUB-HD-CD-B

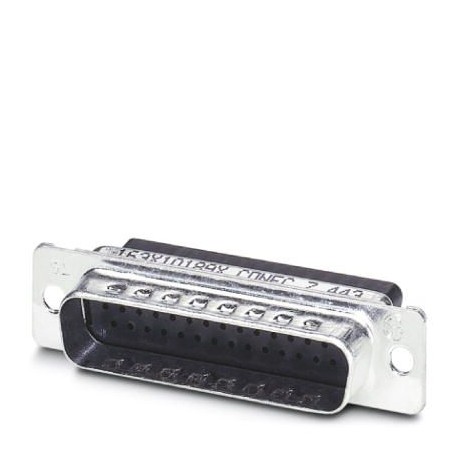

VS-25-ST-DSUB-HD-CD-B 1655250 PHOENIX CONTACT D-SUB contact support
$0.00USD
4934 in stock
Key Specifications
GTIN:4046356029193
Note:Made to Order (non-returnable)
Orderkey:1655250
Catalog page:Page 212 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356029193 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1655250 |
| Catalog page | Page 212 (C-2-2013) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 10 pc |
| Type (Key Commercial Data) | 25 |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Test voltage (Material data) | 1000 V |
| Rated current (Material data) | 3 A (at 20 °C) |
| Degree of pollution (Material data) | 2 |
| Mounting type (Key Commercial Data) | Hole |
| Number of positions (Material data) | 44 |
| Overvoltage category (Material data) | III |
| Weight per Piece (excluding packing) | 7.690 g |
| Housing material (Ambient conditions) | Steel, tin-plated |
| Rated voltage (III/3) (Material data) | 60 V |
| Size of housing (Key Commercial Data) | 3 |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Key Commercial Data) | Crimp connection |
| Connection profile (Key Commercial Data) | 25-pos. D-SUB |
| Number of positions (Key Commercial Data) | 44 |
| Contact carrier material (Ambient conditions) | Glass-fiber reinforced thermoplastics, UL 94 V0 |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 500 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -55 °C ... 115 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
D-SUB contact holder, wrap size 3, for 44 signal contacts, male contact type, for crimped contacts, straight, 3 mm hole fixing, for recessed frame and VS-25 overhead housing-...
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
