VS-25-A-GC-BU/BU

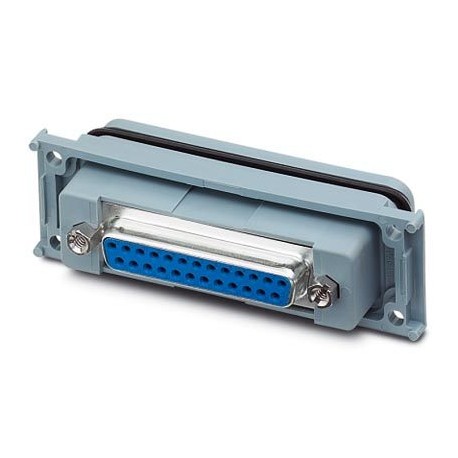

VS-25-A-GC-BU/BU 1689734 PHOENIX CONTACT D-SUB panel mounting frames
$45.30USD
255 in stock
Key Specifications
GTIN:4017918934118
Note:Made to Order (non-returnable)
Orderkey:1689734
Catalog page:Page 221 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918934118 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1689734 |
| Catalog page | Page 221 (C-2-2013) |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 5 pc |
| Type (Key Commercial Data) | D-SUB 25 |
| Color (Key Commercial Data) | gray |
| Height (Ambient conditions) | 27.9 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Material (Ambient conditions) | Plastic |
| Rated current (Material data) | 5 A |
| Seal material (Ambient conditions) | Flat gasket: NBR; profile gasket: EPDM |
| Degree of pollution (Material data) | 2 |
| Number of positions (Material data) | 25 |
| Overvoltage category (Material data) | III |
| Weight per Piece (excluding packing) | 29.240 g |
| Contact material (Ambient conditions) | Copper alloy |
| Housing material (Ambient conditions) | PA |
| Rated voltage (III/3) (Material data) | 125 V |
| Sealing material (Ambient conditions) | Flat gasket: NBR; profile gasket: EPDM |
| Size of housing (Key Commercial Data) | 3 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Number of positions (Key Commercial Data) | 25 |
| Degree of protection (Key Commercial Data) | IP67 |
| Contact carrier material (Ambient conditions) | Polyester GF |
| Contact surface material (Ambient conditions) | Hard gold-plated over nickel |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 200 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -40 °C ... 80 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
D-SUB Recessed Frame, Wrap Size 3, with 25 Signal Contacts, Female, Gender Changer, Shielded, IP67 Degree of Protection
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
