VS-15-ST-DSUB-EG

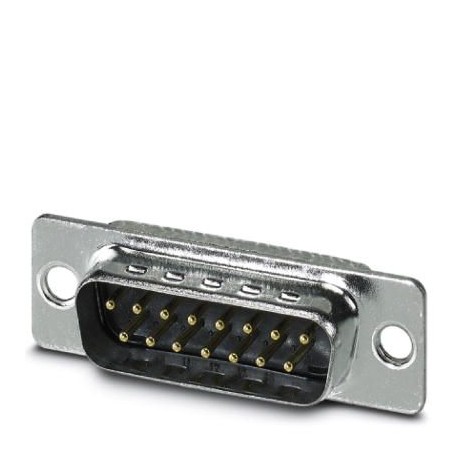

VS-15-ST-DSUB-EG 1688874 PHOENIX CONTACT Contact insert
$8.60USD
1199 in stock
Key Specifications
GTIN:4017918823023
Note:Made to Order (non-returnable)
Orderkey:1688874
Catalog page:Page 210 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918823023 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1688874 |
| Catalog page | Page 210 (C-2-2013) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 10 pc |
| Type (Key Commercial Data) | 15 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Test voltage (Material data) | 1200 V |
| Rated current (Material data) | 5 A (at 20 °C) |
| Degree of pollution (Material data) | 2 |
| Mounting type (Key Commercial Data) | Hole |
| Number of positions (Material data) | 15 |
| Overvoltage category (Material data) | III |
| Weight per Piece (excluding packing) | 7.430 g |
| Contact material (Ambient conditions) | Copper alloy |
| Housing material (Ambient conditions) | Steel, tin-plated |
| Rated voltage (III/3) (Material data) | 125 V |
| Size of housing (Key Commercial Data) | 2 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection method (Key Commercial Data) | Solder cup |
| Connection profile (Key Commercial Data) | D-SUB 15 |
| Number of positions (Key Commercial Data) | 15 |
| Conductor cross section (Key Commercial Data) | 0.5 mm² |
| Contact carrier material (Ambient conditions) | PBT-GF |
| Contact surface material (Ambient conditions) | Hard gold-plated over nickel |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 50 |
| Connection cross section AWG (Key Commercial Data) | 20 |
| Insertion force per signal contact (Key Commercial Data) | ≤ 3.40 N |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -55 °C ... 125 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
D-SUB contact insert, wrap size 2, with 15 signal contacts, male contact type, with welding cup, straight, 3 mm hole fixing, for recessed frame and VS-15 overhead housing-...
