VS-09-ST-DSUB-HD-EG

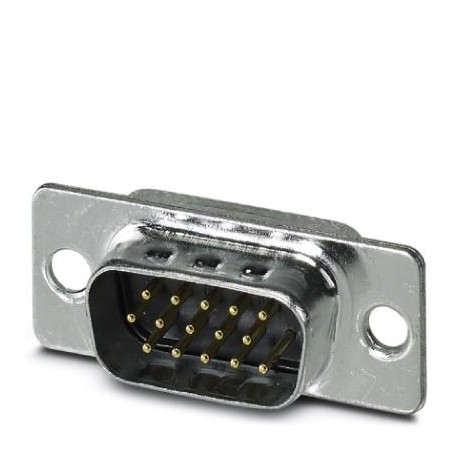

VS-09-ST-DSUB-HD-EG 1655111 PHOENIX CONTACT D-SUB contact insert
$11.30USD
927 in stock
Key Specifications
GTIN:4046356029056
Note:Made to Order (non-returnable)
Orderkey:1655111
Catalog page:Page 210 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356029056 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1655111 |
| Catalog page | Page 210 (C-2-2013) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 10 pc |
| Type (Key Commercial Data) | 09 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Test voltage (Material data) | 1000 V |
| Rated current (Material data) | 3 A (at 20 °C) |
| Degree of pollution (Material data) | 2 |
| Mounting type (Key Commercial Data) | Hole |
| Number of positions (Material data) | 15 |
| Overvoltage category (Material data) | III |
| Weight per Piece (excluding packing) | 11.290 g |
| Contact material (Ambient conditions) | Copper alloy |
| Rated voltage (III/3) (Material data) | 60 V |
| Size of housing (Key Commercial Data) | 1 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection method (Key Commercial Data) | Solder cup |
| Connection profile (Key Commercial Data) | D-SUB 9 |
| Number of positions (Key Commercial Data) | 15 |
| Conductor cross section (Key Commercial Data) | 0.34 mm² |
| Contact carrier material (Ambient conditions) | Glass-fiber reinforced thermoplastics, UL 94 V0 |
| Contact surface material (Ambient conditions) | Au/Sn |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 50 |
| Connection cross section AWG (Key Commercial Data) | 22 |
| Insertion force per signal contact (Key Commercial Data) | ≤ 3.40 N |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -55 °C ... 105 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
D-SUB Contact Insert, Wrap Size 1, with 15 Signal Contacts, Male Contact Type, with Solder Cup, Straight, 3 mm Hole Fixing, for VS-09 Recessed Frames-...
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
