In Stock Hot Product
VS-09-SET-STD

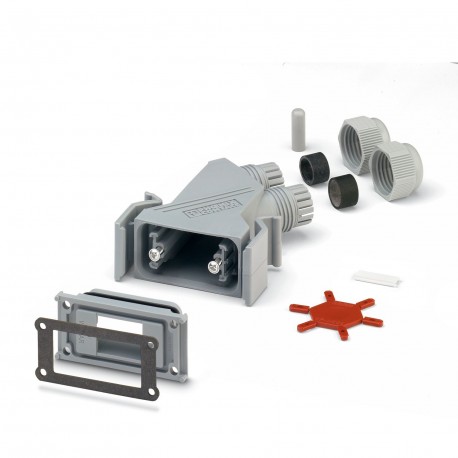

VS-09-SET-STD 1689145 PHOENIX CONTACT D-SUB connector set
$31.45USD
364 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Type:D-SUB
Color:gray
Shielded:no
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Type | D-SUB |
| Color | gray |
| Shielded | no |
| Application | Housing set |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Sensor type | Universal |
| Cable outlet | angled |
| Product type | Data connector (cable side) |
| Seal material | Flat gasket: NBR; profile gasket: EPDM |
| Article revision | 08 |
| Housing material | Plastic |
| Connection method | D-SUB |
| Cable seal material | CR/NBR |
| Degree of pollution | 2 |
| Number of positions | 9 |
| Transmission medium | Copper |
| Degree of protection | IP67 |
| No. of cable outlets | 2 |
| External cable diameter | 3 mm ... 9 mm |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Flammability rating according to UL 94 | V0 |
Product Description
D-SUB connector set, wrap size 1, IP67 degree of protection
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
