VS-09-PROFIBUS-SC

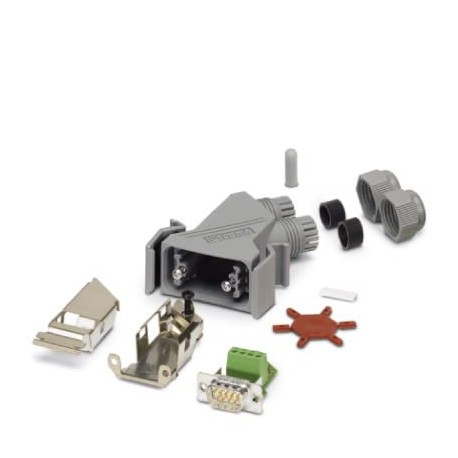

VS-09-PROFIBUS-SC 1654549 PHOENIX CONTACT D-SUB connector
$79.84USD
155 in stock
Key Specifications
GTIN:4017918955083
Orderkey:1654549
Catalog page:Page 444 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918955083 |
| Orderkey | 1654549 |
| Catalog page | Page 444 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | 26 ... 18 (flexible) |
| Type (Key Commercial Data) | D-SUB 9 |
| Color (Key Commercial Data) | gray |
| Height (Ambient conditions) | 59 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Rated current (Material data) | 1 A |
| Shielded (Key Commercial Data) | yes |
| Cable outlet (Key Commercial Data) | Angled |
| Degree of pollution (Material data) | 2 |
| Number of positions (Material data) | 9 |
| Overvoltage category (Material data) | II |
| Weight per Piece (excluding packing) | 93.500 g |
| Housing material (Ambient conditions) | PA |
| Rated voltage (III/3) (Material data) | 50 V |
| Size of housing (Key Commercial Data) | 1 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Key Commercial Data) | Screw connection |
| Cable seal material (Ambient conditions) | CR/NBR |
| Number of positions (Key Commercial Data) | 9 |
| Degree of protection (Key Commercial Data) | IP67 |
| No. of cable outlets (Key Commercial Data) | 2 |
| Conductor cross section (Key Commercial Data) | 0.14 mm² ... 1.5 mm² (solid) |
| External cable diameter (Key Commercial Data) | 5 mm ... 9 mm |
| Housing surface material (Ambient conditions) | PA, light gray |
| Degree of protection (Mechanical characteristics) | IP67 |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 200 |
| Connection cross section AWG (Key Commercial Data) | 26 ... 16 (solid) |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -20 °C ... 75 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
D-SUB plug-in connector, protection index: IP67, number of poles: 9, material: PA, connection type: Screw connection, connection section: AWG 26- 16, cable output: inclined, with integrated closing re
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
