VS-09-CAN

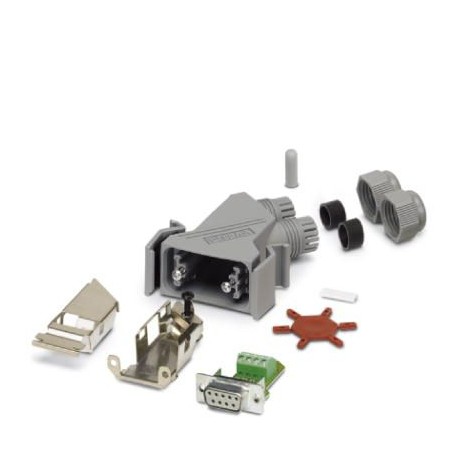

VS-09-CAN 1689307 PHOENIX CONTACT D-SUB connector
$122.89USD
121 in stock
Key Specifications
GTIN:4017918881016
Note:Made to Order (non-returnable)
Orderkey:1689307
Catalog page:Page 444 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918881016 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1689307 |
| Catalog page | Page 444 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Type (Key Commercial Data) | D-SUB 9 |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Rated current (Material data) | 1 A |
| Shielded (Key Commercial Data) | yes |
| Cable outlet (Key Commercial Data) | Angled |
| Degree of pollution (Material data) | 2 |
| Number of positions (Material data) | 9 |
| Overvoltage category (Material data) | II |
| Weight per Piece (excluding packing) | 95.000 g |
| Contact material (Ambient conditions) | Copper alloy |
| Housing material (Ambient conditions) | PA |
| Rated voltage (III/3) (Material data) | 63 V |
| Size of housing (Key Commercial Data) | 1 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection method (Key Commercial Data) | Screw connection |
| Cable seal material (Ambient conditions) | CR/NBR |
| Number of positions (Key Commercial Data) | 9 |
| Degree of protection (Key Commercial Data) | IP67 |
| No. of cable outlets (Key Commercial Data) | 2 |
| Conductor cross section (Key Commercial Data) | 0.14 mm² ... 0.5 mm² |
| Contact carrier material (Ambient conditions) | PBTP |
| Contact surface material (Ambient conditions) | Gold over nickel |
| External cable diameter (Key Commercial Data) | 5 mm ... 9 mm |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 200 |
| Connection cross section AWG (Key Commercial Data) | 26 ... 20 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -20 °C ... 75 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
D-SUB plug-in connector, protection index: IP20, number of poles: 9, material: PA, connection type: Screw connection, connection section: AWG 26- 20, cable outlet: inclined, with integrated closing re
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
