VS-09-BU-DSUB-EG

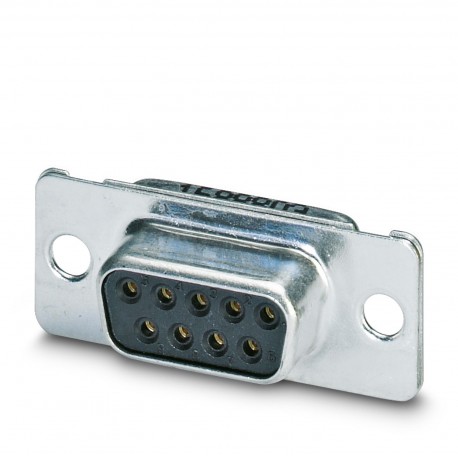

VS-09-BU-DSUB-EG 1688803 PHOENIX CONTACT Contact insert
$7.67USD
1349 in stock
Key Specifications
Type:D-SUB
Width:14.5 mm
Height:31.19 mm
Length:12.93 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | D-SUB |
| Width | 14.5 mm |
| Height | 31.19 mm |
| Length | 12.93 mm |
| Shielded | yes |
| Product type | Female insert |
| Test voltage | 1200 V |
| Mounting type | Screw mounting |
| Rated current | 5 A (at 20 °C) |
| Number of slots | 1 |
| Article revision | 02 |
| Contact material | Copper alloy |
| Housing material | Metal |
| Connection method | Solder cup |
| Connection profile | D-SUB |
| Power transmission | Power |
| Degree of pollution | 2 |
| Number of positions | 9 |
| Rated surge voltage | 1 kV |
| Transmission medium | Copper |
| Degree of protection | IP20 |
| Overvoltage category | III |
| Rated voltage (III/3) | 125 V |
| Contact carrier material | PBT-GF |
| Contact surface material | Gold |
| Housing surface material | metal-plated |
| Insertion/withdrawal cycles | ≥ 50 |
| Ambient temperature (operation) | -55 °C ... 125 °C |
| Insertion force per signal contact | ≤ 3.40 N |
| Flammability rating according to UL 94 | V0 |
| Rated voltage in acc. with IEC 61076-2-101 | 400 V |
Product Description
D-SUB contact insert, wrapper size 1, with 9 signal contacts, female contact type, with welding cup, straight, 3 mm drill fixing, for recessed frame and VS-09 overhead housing-...
