In Stock Hot Product
VS-08-SD-F
VS-08-SD-F 1652606 PHOENIX CONTACT Protective covers
$5.80USD
1772 in stock
Key Specifications
GTIN:4017918953034
Orderkey:1652606
Catalog page:Page 453 (C-2-2017)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918953034 |
| Orderkey | 1652606 |
| Catalog page | Page 453 (C-2-2017) |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39235090 |
| Minimum order quantity | 5 pc |
| Color (Key Commercial Data) | gray |
| Height (Ambient conditions) | 10 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Ambient conditions) | Plastic |
| Locking type (Key Commercial Data) | without |
| Seal material (Ambient conditions) | EDPM, self-greasing |
| Weight per Piece (excluding packing) | 3.000 g |
| Housing material (Ambient conditions) | PA |
| Sealing material (Ambient conditions) | EDPM, self-greasing |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection profile (Key Commercial Data) | RJ45 |
| Degree of protection (Key Commercial Data) | IP67 |
| Flammability rating according to UL 94 (Material data) | V0 |
| Ambient temperature (assembly) (Mechanical characteristics) | -5 °C ... 55 °C |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) (Mechanical characteristics) | -40 °C ... 70 °C |
Product Description

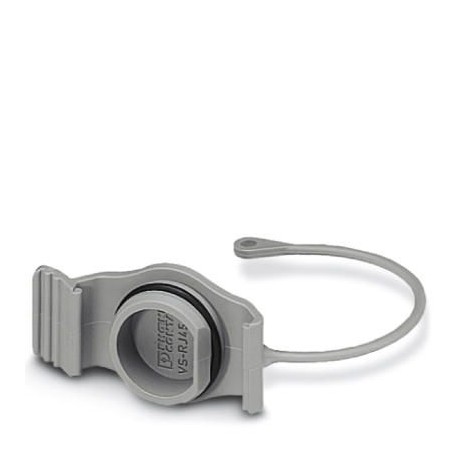

Protective cover, IP67, flat design, to cover the contact insert in the recessed frame, colour: Grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
