VM2/C0-1B

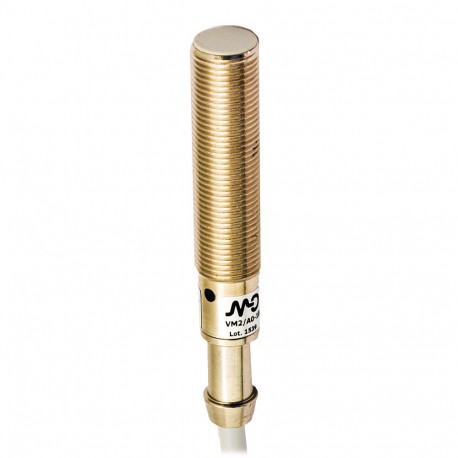

VM2/C0-1B MICRO DETECTORS Inductive sensor M12 shielded NC cable 2m
$0.00USD
4014 in stock
Key Specifications
Weight:100g
Mounting:Shielded
Approvals:CEUR
Dimensions:M12 x 1 / L = 71,5mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 100g |
| Mounting | Shielded |
| Approvals | CEUR |
| Dimensions | M12 x 1 / L = 71,5mm |
| Hysteresis | 1 … 20% |
| Connections | 10Nm |
| Output type | TRIAC |
| Load current | 7A (Ton = 10ms) |
| Inrush current | 7A (Ton = 10ms) |
| LED indicators | Yellow LED output state |
| Leakage current | ≤ 1mA RMS max |
| Output Function | NC |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 12x12mm FE360 |
| Housing Material | Nickel-plated brass |
| Correction Factor | copper: 0,40 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,75 |
| EMC compatibility | 2m PVC Cable with tang |
| Operating Voltage | 20 - 253Vac - 50/60Hz |
| Tightening torque | 5...300mA |
| Max ripple content | ≤10% |
| Operanting distance | 0…1,6mm |
| Output voltage drop | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Switching frequency | 25Hz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PBT |
| Degree of protection | IP 67 (EN60529) |
| Supplied Accessories | 2 nuts M12x1 |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | IEC 60947-5-2 |
| Nominal sensing distance | 2mm |
| Time delay before availability | 200ms |
Product Description
VM2/C0-1B Inductive sensor M12 shielded NC cable 2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
