VL KVM EXTENDER

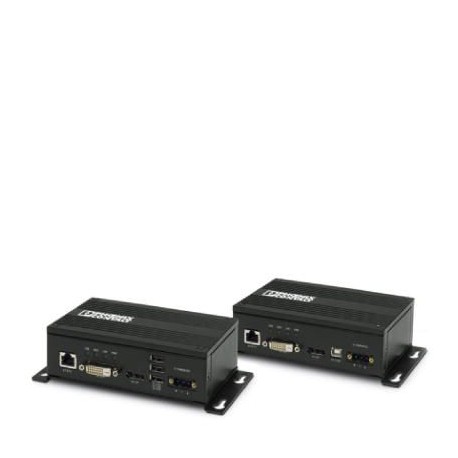

VL KVM EXTENDER 2404770 PHOENIX CONTACT KVM extender
$0.00USD
4430 in stock
Key Specifications
GTIN:4055626500089
(Note):Bookshelf mounting
Orderkey:2404770
(General):1x DVI-D
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626500089 |
| (Note) | Bookshelf mounting |
| Orderkey | 2404770 |
| (General) | 1x DVI-D |
| Note (Note) | |
| Packing unit | 1 pc |
| Weight (Note) | 1 kg |
| Country of origin | TW (Taiwan) |
| Custom tariff number | 85176200 |
| Interfaces (General) | 1x USB 2.0, Typ B (VL KVM EXTENDER (TX)) |
| Mounting type (Note) | DIN rail mounting |
| Shock (Computer data) | 15g, 11 ms in accordance with IEC 60068-2-27 |
| Shock (Device supply) | 15g, 11 ms in accordance with IEC 60068-2-27 |
| Monitor output (General) | 1x DisplayPort |
| Scope of delivery (Note) | Includes VL KVM EXTENDER (TX), VL KVM EXTENDER (RX), one 1.8 m USB A to USB B cable, one 1.8 m DP++ cable, and one USB A to micro-B USB cable (for service connection) |
| Degree of protection (Computer data) | IP20 |
| Weight per Piece (excluding packing) | 1,600.000 g |
| Power supply unit (Ambient conditions) | 24 V DC ±20 % |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Ambient temperature (operation) (Computer data) | -20 °C ... 50 °C |
| Permissible humidity (operation) (Computer data) | 5 % ... 95 % (relative humidity, non-condensing) |
| Ambient temperature (storage/transport) (Computer data) | -30 °C ... 85 °C |
| Permissible humidity (storage/transport) (Computer data) | 5 % ... 95 % (relative humidity, non-condensing) |
Product Description
Keyboard, video and mouse signals can be transmitted at distances of up to 90 m from the IPC.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
