VIP-3/SC/RJ45

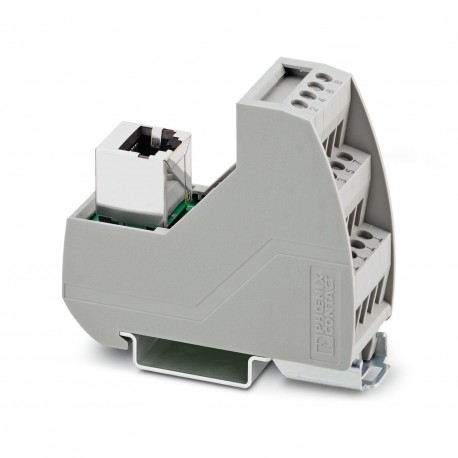

VIP-3/SC/RJ45 2900701 PHOENIX CONTACT Interface module
$0.00USD
3852 in stock
Key Specifications
Color:gray (RAL 7042)
Depth:62 mm
Width:26.9 mm
Height:69 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | gray (RAL 7042) |
| Depth | 62 mm |
| Width | 26.9 mm |
| Height | 69 mm |
| Product type | Interface module |
| Screw thread | M 3 |
| Mounting type | DIN rail mounting |
| Product family | VARIOFACE Professional |
| Status display | no |
| Article revision | 05 |
| Stripping length | 8 mm |
| Connection method | Screw connection |
| Mounting position | any |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Nominal voltage UN | 48 V AC/DC |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Number of positions | 8 |
| Number of connections | 1 |
| Standards/regulations | EN 50178 |
| Status display present | No |
| Conductor cross section AWG | 24 ... 12 |
| Housing insulation material | Polyamide PA non-reinforced |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Connection in acc. with standard | IEC / EN |
| Max. total current of all branches | 4 A |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Max. current carrying capacity per branch | 1 A |
Product Description
VARIOFACE module with screw connection and RJ45 male connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
