VIP-2/SC/D37SUB/M/SO

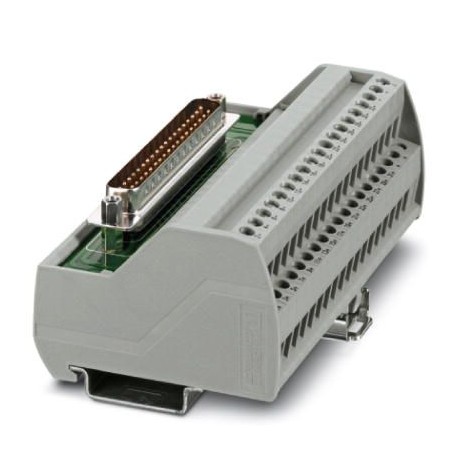

VIP-2/SC/D37SUB/M/SO 2900786 PHOENIX CONTACT Interface module
$0.00USD
4082 in stock
Key Specifications
GTIN:4046356545082
Note:Made to Order (non-returnable)
Orderkey:2900786
Catalog page:Page 487 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356545082 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2900786 |
| Catalog page | Page 487 (C-5-2017) |
| Packing unit | 1 pc |
| Country of origin | US (United States) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 60 V DC |
| Screw thread (General) | M 3 |
| Connection name (General) | Field level |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 45.1 mm |
| Width (Key Commercial Data) | 101 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 65.5 mm |
| (Connection data for connection 2) | TAOX11 (redundant) |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 206.000 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Number of positions (Ambient conditions) | 37 |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Connection in acc. with standard (General) | IEC / EN |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Standards/regulations (Supported controller) | DIN EN 50178 |
| Controller (Connection data for connection 2) | HONEYWELL Experion PKS C300/C-Series |
| Max. perm. operating voltage (Ambient conditions) | 25 V AC |
| Connection name (Connection data for connection 1) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | D-SUB pin strip |
| Max. perm. current (per branch) (Ambient conditions) | 2 A |
| - suitable I/O card (Connection data for connection 2) | TDIL01 (non-redundant) |
| Number of positions (Connection data for connection 1) | 37 |
| Number of connections (Connection data for connection 1) | 1 |
| Flammability rating according to UL 94 (Supported controller) | V0 |
Product Description
VARIOFACE module, with screw connection and D-SUB miniature male connector, for mounting on symmetrical NS 35 rails, number of poles: 37
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
