VIP-2/SC/D15SUB/F

Parameter	Value
	60 V DC
Color	gray (RAL 7042)
Depth	45.1 mm
Width	45 mm
Height	65.5 mm
Product type	Interface module
Screw thread	M 3
Mounting type	DIN rail mounting
Product family	VARIOFACE Professional
Article revision	11
Pollution degree	2
Stripping length	8 mm
Connection method	Screw connection
Mounting position	any
Tightening torque	0.5 Nm ... 0.6 Nm
Nominal voltage UN	25 V AC
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Number of positions	15
Rated surge voltage	1.2 kV
Overvoltage category	II
Number of connections	1
Standards/regulations	IEC 60664
Status display present	No
Conductor cross section AWG	24 ... 12
Housing insulation material	Polyamide PA non-reinforced
Conductor cross section rigid	0.2 mm² ... 4 mm²
Ambient temperature (operation)	-20 °C ... 50 °C
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Connection in acc. with standard	IEC / EN
Flammability rating according to UL 94	V0
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Max. current carrying capacity per branch	2 A

VARIOFACE module, with screw connection and D-SUB 15 plug-in connection, for installation on symmetrical NS 35 rails

Technical specifications and performance data

Installation and operation guide

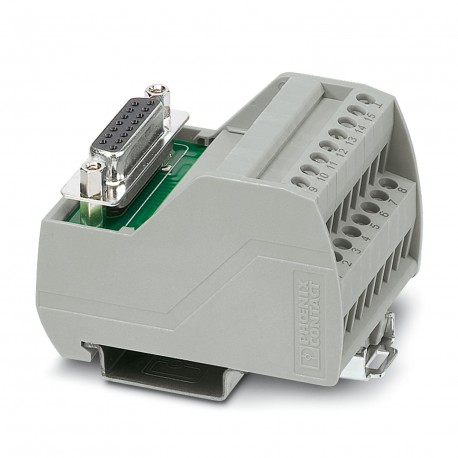

VIP-2/SC/D15SUB/F 2315175 PHOENIX CONTACT Interface module
