VIP-2/SC/2FLK14/AB-1756

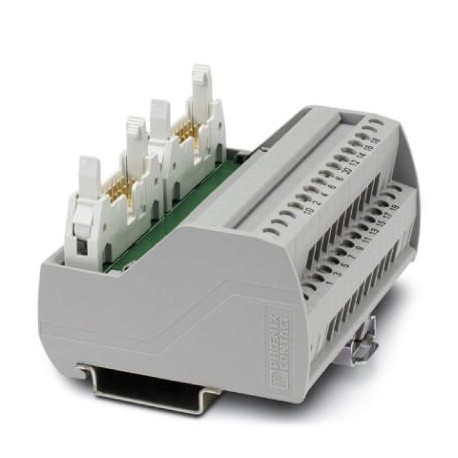

VIP-2/SC/2FLK14/AB-1756 2322333 PHOENIX CONTACT Passive module
$0.00USD
4867 in stock
Key Specifications
GTIN:4046356451734
Note:Made to Order (non-returnable)
Orderkey:2322333
Catalog page:Page 475 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356451734 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2322333 |
| Catalog page | Page 475 (C-5-2017) |
| Packing unit | 1 pc |
| Country of origin | US (United States) |
| Custom tariff number | 85366990 |
| Screw thread (General) | M 3 |
| (Supported controller) | DIN EN 50178 |
| Connection name (General) | Field level |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 56 mm |
| Width (Key Commercial Data) | 80.6 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 65.5 mm |
| (Connection data for connection 2) | TC-OAV 081 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 158.600 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Number of positions (Ambient conditions) | 14 |
| Pitch (Connection data for connection 1) | 2.54 mm |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Degree of pollution (Supported controller) | 2 |
| Rated surge voltage (Supported controller) | 0.6 kV |
| Overvoltage category (Supported controller) | II |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Standards/regulations (Supported controller) | IEC 60664 |
| Controller (Connection data for connection 2) | HONEYWELL Experion PKS C200 |
| Max. perm. operating voltage (Ambient conditions) | 60 V AC/DC |
| Connection name (Connection data for connection 1) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | IDC/FLK pin strip |
| Max. perm. current (per branch) (Ambient conditions) | 1 A |
| - suitable I/O card (Connection data for connection 2) | TC-IDX 081 |
| Number of positions (Connection data for connection 1) | 14 |
| Connection in acc. with standard (Supported controller) | CUL |
| Number of connections (Connection data for connection 1) | 2 |
Product Description
VARIOFACE COMPACT LINE interface module for Allen-Bradley® ControlLogix® systems, with ControlLogix-specific labeling; number of poles 2 x 14; Module width 80.6 mm.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
