VIP-2/PT/D37SUB/M

Parameter	Value
	60 V DC
Color	gray (RAL 7042)
Depth	46.6 mm
Width	102.8 mm
Height	72.1 mm
Product type	Interface module
Mounting type	DIN rail mounting
Product family	VARIOFACE Professional
Status display	no
No. of channels	16
Article revision	05
Pollution degree	2
Stripping length	8 mm
Connection method	Push-in connection
Mounting position	any
Suitable I/O card	TDIL01 (non-redundant)
Nominal voltage UN	25 V AC
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Number of positions	37
Rated surge voltage	1.2 kV
Overvoltage category	II
Number of connections	1
Standards/regulations	IEC 60664
Status display present	No
Conductor cross section AWG	26 ... 14
Housing insulation material	Polyamide PA non-reinforced
Conductor cross section rigid	0.14 mm² ... 4 mm²
Ambient temperature (operation)	-20 °C ... 70 °C
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Connection in acc. with standard	IEC / EN
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Max. current carrying capacity per branch	2 A

VARIOFACE module, with push-in connection and D-SUB miniature male connector, for mounting on NS 35 symmetrical rails, number of poles: 37

Technical specifications and performance data

Installation and operation guide

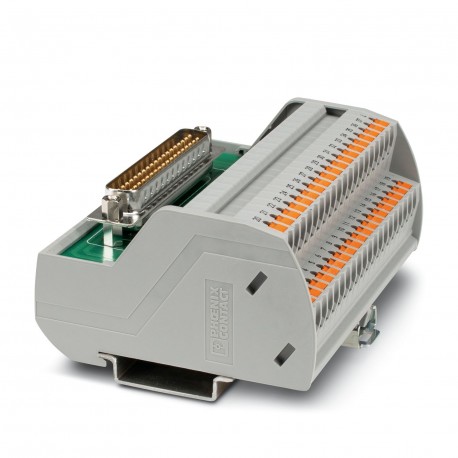

VIP-2/PT/D37SUB/M 2904277 PHOENIX CONTACT Interface module
