VC-TFS 2-PE

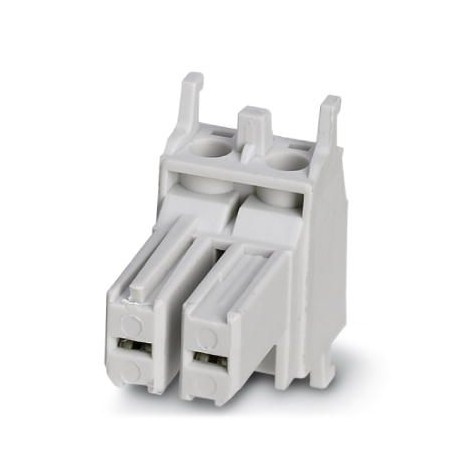

VC-TFS 2-PE 1583513 PHOENIX CONTACT Contact insert
$4.38USD
2330 in stock
Key Specifications
GTIN:4046356153256
Note:Made to Order (non-returnable)
Orderkey:1583513
Catalog page:Page 33 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356153256 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1583513 |
| Catalog page | Page 33 (C-2-2013) |
| Packing unit | 50 pc |
| (Material data) | 20 A |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Rated current (Material data) | 20 A |
| Rated surge voltage (Material data) | 6 kV |
| Weight per Piece (excluding packing) | 8.760 g |
| Contact material (Ambient conditions) | CuZn |
| Housing material (Ambient conditions) | PA 6.6 |
| Rated voltage (III/3) (Material data) | 400 V |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection method (Key Commercial Data) | Screw connection |
| Tightening torque (Key Commercial Data) | 0.5 Nm ... 0.6 Nm |
| Ambient temperature (operation) (General) | -40 °C ... 100 °C |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 1+PE |
| Connection technology (Key Commercial Data) | Screw connection |
| Conductor cross section (Key Commercial Data) | 0.2 mm² ... 4 mm² |
| Contact carrier material (Ambient conditions) | PA |
| Contact surface material (Ambient conditions) | Tin-plated |
| Connection cross section AWG (Key Commercial Data) | 24 ... 12 |
| Stripping length of the individual wire (Key Commercial Data) | 7 mm |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
Contact insert, Family of items: VARIOCON, housing material: Polyamide, color: light gray, number of poles: 2, min. conductor section: 0.25 mm², max. conductor section: 4 mm², nominal voltage: 400, as
