In Stock Hot Product
VC-SD-T4

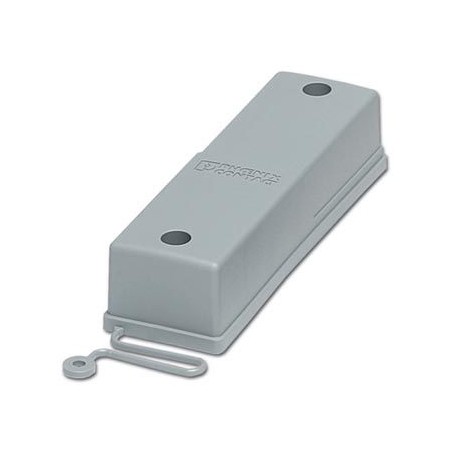

VC-SD-T4 1886757 PHOENIX CONTACT Protective covers
$0.00USD
3767 in stock
Key Specifications
GTIN:4017918908447
Note:Made to Order (non-returnable)
Orderkey:1886757
Catalog page:Page 48 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918908447 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1886757 |
| Catalog page | Page 48 (C-2-2013) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 5 pc |
| Size (Ambient conditions) | VC4 |
| Type (Ambient conditions) | For sleeve housing |
| Width (Key Commercial Data) | 33 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 22.9 mm |
| Length (Key Commercial Data) | 104 mm |
| Material (Ambient conditions) | PA |
| Degree of protection (Dimensions) | IP65 |
| Seal present (Ambient conditions) | no |
| Mounting type (Ambient conditions) | Screw locking |
| Weight per Piece (excluding packing) | 23.240 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Assembly instructions (Ambient conditions) | Tightening torque 1.6 Nm |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Protective cover, construction: VC4, housing material: PA 6, color: gray
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
