In Stock Hot Product
VC-MP-S2

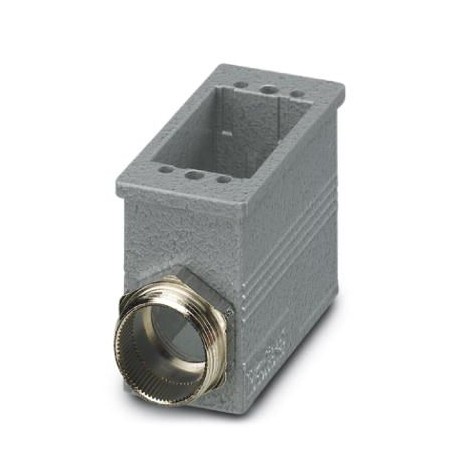

VC-MP-S2 1884733 PHOENIX CONTACT Housing
$0.00USD
3655 in stock
Key Specifications
GTIN:4017918164768
Orderkey:1884733
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Catalog page:Page 31 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918164768 |
| Orderkey | 1884733 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 31 (C-2-2013) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 85389099 |
| Note (Ambient conditions) | When using fiber optics, the bending radii of the cable manufacturers must be observed. |
| Type (Ambient conditions) | VC2 |
| Height (Key Commercial Data) | 55 mm |
| Cable outlet (Ambient conditions) | lateral |
| Degree of protection (Dimensions) | IP65/IP66/IP67 |
| Locking type (Ambient conditions) | Screw locking |
| Seal material (Ambient conditions) | EPDM |
| Weight per Piece (excluding packing) | 446.140 g |
| Housing material (Ambient conditions) | Zinc die-cast |
| Degree of protection (Ambient conditions) | IP65/IP66/IP67 |
| Number of module slots (Ambient conditions) | 3 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Type of the screw connection (Ambient conditions) | Pg21 |
| Ambient temperature (operation) (Ambient conditions) | -40 °C ... 125 °C |
Product Description
Housing, Article family: VARIOCON, construction: VC2, housing material: Zinc die-casting, color: gray. In the use of fibre optic conductors, the bending radii of the cable manufacturer must be conside
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
