In Stock Hot Product
VC-MEMV-T1-R

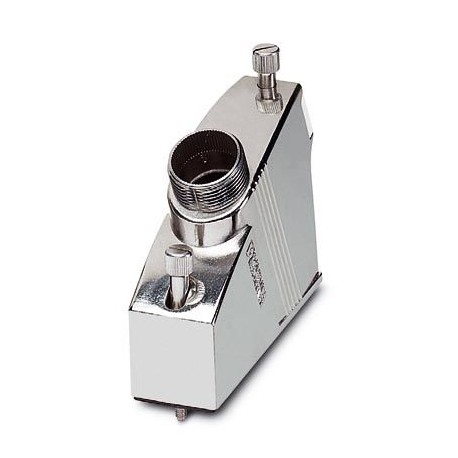

VC-MEMV-T1-R 1855131 PHOENIX CONTACT Housing
$0.00USD
4395 in stock
Key Specifications
GTIN:4017918159252
Note:Made to Order (non-returnable)
Orderkey:1855131
Catalog page:Page 369 (PC-2009)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918159252 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1855131 |
| Catalog page | Page 369 (PC-2009) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| Minimum order quantity | 5 pc |
| Size (Ambient conditions) | VC1 |
| Width (Key Commercial Data) | 33 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 65 mm |
| Length (Key Commercial Data) | 59 mm |
| Cable outlet (Ambient conditions) | Angled |
| Locking type (Ambient conditions) | Screw locking, knurled head |
| Seal material (Ambient conditions) | EPDM, conductive |
| Weight per Piece (excluding packing) | 241.850 g |
| Housing material (Ambient conditions) | Zinc die-cast, surface bronzed and nickel-plated |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| No. of cable outlets (Ambient conditions) | 1 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Material of locking screw (Ambient conditions) | Nickel-plated brass |
| Flammability rating according to UL 94 (General) | V0 |
| Type of the screw connection (Ambient conditions) | Pg16 |
| Tightening torque, mounting screw (Ambient conditions) | 1 Nm ±0.5 Nm |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Aerial housing, Article family: VARIOCON, construction: VC1, housing material: Zinc die-casting, color: nickel. In the use of fibre optic conductors, the bending radii of the cable manufacturer must b
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
