VC-MEMV-T1-R-M20

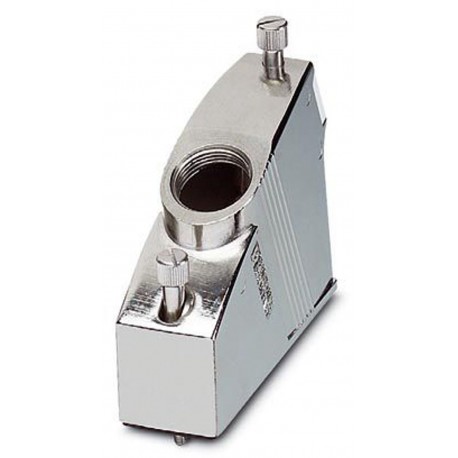

VC-MEMV-T1-R-M20 1886595 PHOENIX CONTACT Housing
$0.00USD
3630 in stock
Key Specifications
GTIN:4017918848019
Note:Made to Order (non-returnable)
Orderkey:1886595
Catalog page:Page 367 (PC-2009)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918848019 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1886595 |
| Catalog page | Page 367 (PC-2009) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| Size (Ambient conditions) | VC1 |
| Width (Key Commercial Data) | 33 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 65 mm |
| Length (Key Commercial Data) | 59 mm |
| Cable outlet (Ambient conditions) | Angled |
| Housing type (Ambient conditions) | Sleeve housing |
| Locking type (Ambient conditions) | Screw locking, knurled head |
| Seal material (Ambient conditions) | EPDM, conductive |
| Weight per Piece (excluding packing) | 231.800 g |
| Housing material (Ambient conditions) | Zinc die-cast, surface bronzed and nickel-plated |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| No. of cable outlets (Ambient conditions) | 1 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Material of locking screw (Ambient conditions) | Nickel-plated brass |
| Flammability rating according to UL 94 (General) | V0 |
| Type of the screw connection (Ambient conditions) | M20 |
| Tightening torque, mounting screw (Ambient conditions) | 1.5 Nm ±0.3 Nm |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Aerial housing, Article family: VARIOCON, construction: VC1, housing material: Zinc die-casting, color: nickel. In the use of fibre optic conductors, the bending radii of the cable manufacturer must b
