In Stock Hot Product
VC-M-KV-PG21 3X9

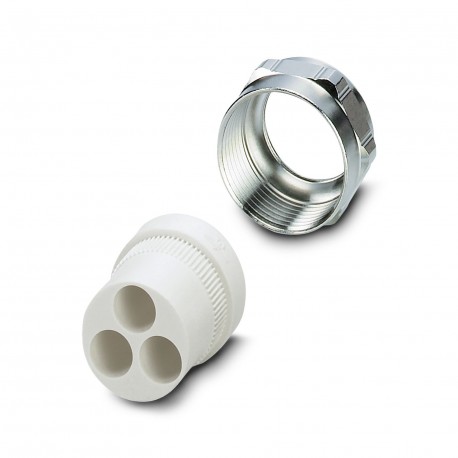

VC-M-KV-PG21 3X9 1885664 PHOENIX CONTACT Cable gland
$0.00USD
4133 in stock
Key Specifications
GTIN:4017918176761
Note:Made to Order (non-returnable)
Orderkey:1885664
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918176761 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1885664 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 47 (C-2-2013) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 74153300 |
| Minimum order quantity | 5 pc |
| Length (Key Commercial Data) | 30 mm |
| Shielded (Ambient conditions) | no |
| Seal material (Ambient conditions) | TPE |
| Weight per Piece (excluding packing) | 31.680 g |
| Sealing material (Ambient conditions) | TPE |
| Degree of protection (IP) (Dimensions) | IP65 |
| No. of conductors (Ambient conditions) | 3 |
| Cable seal material (Ambient conditions) | TPE |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Wrench size, union nut (Key Commercial Data) | 30 mm |
| External cable diameter (Key Commercial Data) | 8.5 mm ... 9 mm (Cable 1) |
| Material, pressure screw (Ambient conditions) | Nickel-plated brass |
| Thread type on seal side (Ambient conditions) | Pg21 |
| Tightening torque, union nut (Ambient conditions) | 10.00 Nm |
Product Description
Pg21 Multiple Cable Gland, Metallic, Rubber Sealing Rubber Compound with Several Holes (3 of 8 mm) and a Tightening Screw, for Cable Gland Tubing VC-M-KV-PG21...
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
