VC-M-KV-PG16 1X5/2X6
VC-M-KV-PG16 1X5/2X6 1885509 PHOENIX CONTACT Cable gland
$0.00USD
3830 in stock
Key Specifications
GTIN:4017918176600
Note:Made to Order (non-returnable)
Orderkey:1885509
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918176600 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1885509 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 46 (C-2-2013) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 74153300 |
| Minimum order quantity | 5 pc |
| Length (Key Commercial Data) | 24.5 mm |
| Shielded (Ambient conditions) | no |
| Seal material (Ambient conditions) | TPE |
| Weight per Piece (excluding packing) | 17.170 g |
| Sealing material (Ambient conditions) | TPE |
| Degree of protection (IP) (Dimensions) | IP65 |
| No. of conductors (Ambient conditions) | 3 |
| Cable seal material (Ambient conditions) | TPE |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Wrench size, union nut (Key Commercial Data) | 24 mm |
| External cable diameter (Key Commercial Data) | 4.5 mm ... 5 mm (Cable 1) |
| Material, pressure screw (Ambient conditions) | Nickel-plated brass |
| Thread type on seal side (Ambient conditions) | Pg16 |
| Tightening torque, union nut (Ambient conditions) | 7.50 Nm |
Product Description

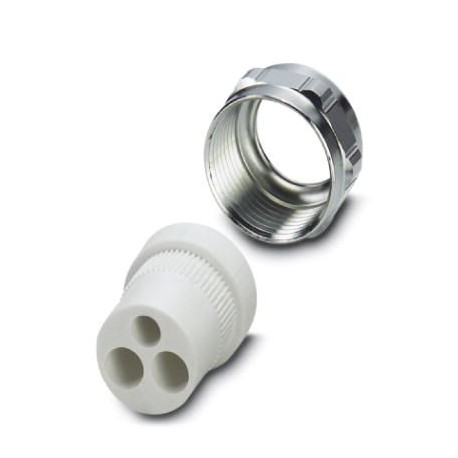

Pg16 Multiple Cable Gland, metallic, composed of rubber sealing machine with several holes (1 5 mm / 2 6 mm) and a clamping screw, for pipes for cable glands VC-M-KV-PG16...
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
