In Stock Hot Product
VC-K-KV-PG21 4X6,5

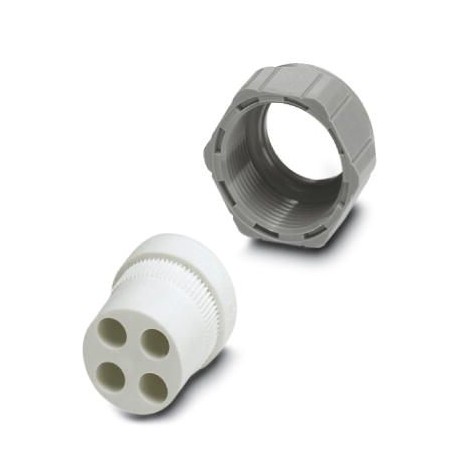

VC-K-KV-PG21 4X6,5 1885596 PHOENIX CONTACT Cable gland
$0.00USD
3115 in stock
Key Specifications
GTIN:4017918176693
Note:Made to Order (non-returnable)
Orderkey:1885596
Catalog page:Page 47 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918176693 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1885596 |
| Catalog page | Page 47 (C-2-2013) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 5 pc |
| Length (Key Commercial Data) | 31 mm |
| Shielded (Ambient conditions) | no |
| Seal material (Ambient conditions) | TPE |
| Weight per Piece (excluding packing) | 17.240 g |
| Sealing material (Ambient conditions) | TPE |
| Degree of protection (IP) (Dimensions) | IP65 |
| No. of conductors (Ambient conditions) | 4 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 100 °C |
| Wrench size, union nut (Key Commercial Data) | 33 mm |
| External cable diameter (Key Commercial Data) | 6 mm ... 6.5 mm (Cable 1) |
| Material, pressure screw (Ambient conditions) | Polyamide |
| Thread type on seal side (Ambient conditions) | Pg21 |
| Tightening torque, union nut (Ambient conditions) | 7.50 Nm |
| Type of the screw connection (Ambient conditions) | Half screw connection |
Product Description
Pg21 split cable gland, made of plastic, rubber sealing rubber compound with several holes (4 of 6.5 mm) and a clamping screw, for pipes for cable glands VC-M-KV-PG21.......
