In Stock Hot Product
VC-K-KV-PG16 2X6/1X7

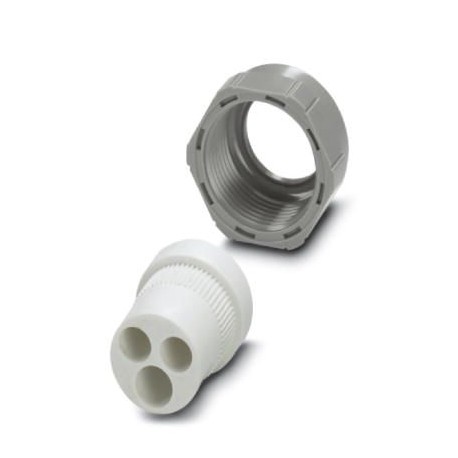

VC-K-KV-PG16 2X6/1X7 1885431 PHOENIX CONTACT Cable gland
$0.00USD
4663 in stock
Key Specifications
GTIN:4017918176532
Note:Made to Order (non-returnable)
Orderkey:1885431
Catalog page:Page 46 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918176532 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1885431 |
| Catalog page | Page 46 (C-2-2013) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 5 pc |
| Length (Key Commercial Data) | 24.1 mm |
| Shielded (Ambient conditions) | no |
| Seal material (Ambient conditions) | TPE |
| Weight per Piece (excluding packing) | 8.820 g |
| Sealing material (Ambient conditions) | TPE |
| Degree of protection (IP) (Dimensions) | IP65 |
| No. of conductors (Ambient conditions) | 3 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 100 °C |
| Wrench size, union nut (Key Commercial Data) | 27 mm |
| External cable diameter (Key Commercial Data) | 5.5 mm ... 6 mm (Cable 1) |
| Material, pressure screw (Ambient conditions) | Polyamide |
| Thread type on seal side (Ambient conditions) | Pg16 |
| Tightening torque, union nut (Ambient conditions) | 5.00 Nm |
| Type of the screw connection (Ambient conditions) | Half screw connection |
Product Description
Pg16 split cable gland, made of plastic, composed of rubber sealing machine with several holes (2 x 6 mm / 1 x 7 mm) and a clamping screw, for pipes for cable glands VC-M-KV-PG16....
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
