VC-EMV-KV-PG16( 9-13/10,5)

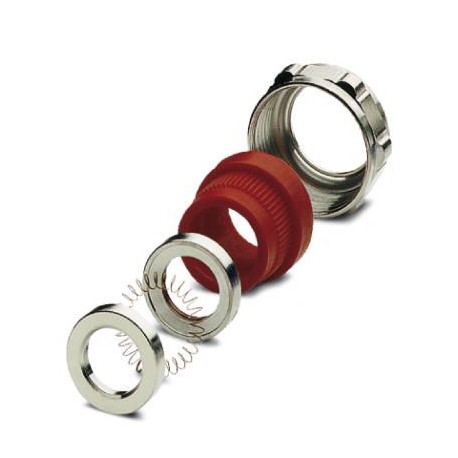

VC-EMV-KV-PG16( 9-13/10,5) 1854174 PHOENIX CONTACT Cable gland
$0.00USD
3309 in stock
Key Specifications
GTIN:4017918145767
Note:Made to Order (non-returnable)
Orderkey:1854174
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918145767 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1854174 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 44 (C-2-2013) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 85369010 |
| Length (Key Commercial Data) | 26.2 mm |
| Shielded (Ambient conditions) | yes |
| Degree of protection (Dimensions) | IP67 |
| Seal material (Ambient conditions) | TPE |
| Weight per Piece (excluding packing) | 11.000 g |
| Sealing material (Ambient conditions) | TPE |
| Shield diameter (Key Commercial Data) | 10.5 mm |
| No. of conductors (Ambient conditions) | 1 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Wrench size, union nut (Key Commercial Data) | 24 mm |
| External cable diameter (Key Commercial Data) | 9 mm ... 13 mm |
| Material, pressure screw (Ambient conditions) | Nickel-plated brass |
| Thread type on seal side (Ambient conditions) | Pg16 |
| Tightening torque, union nut (Ambient conditions) | 7.50 Nm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
