VC-AR3/4M-S8888-SET

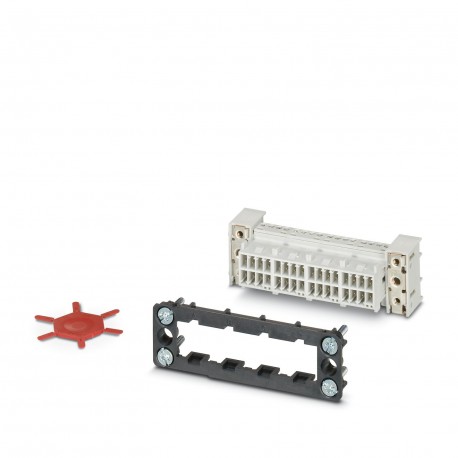

VC-AR3/4M-S8888-SET 1607418 PHOENIX CONTACT Contact insert set
$41.55USD
284 in stock
Key Specifications
GTIN:4017918941130
Orderkey:1607418
Catalog page:Page 24 (C-2-2013)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918941130 |
| Orderkey | 1607418 |
| Catalog page | Page 24 (C-2-2013) |
| Packing unit | 5 pc |
| (Material data) | 10 A |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| Note (Key Commercial Data) | Connectors may only be connected/disconnected when under no load. |
| Size (Key Commercial Data) | VC3 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Rated current (Material data) | 10 A |
| Nominal current IN (Material data) | 10 A |
| Nominal voltage UN (Material data) | 160 V |
| Rated surge voltage (Material data) | 2.5 kV |
| Weight per Piece (excluding packing) | 60.940 g |
| Contact material (Ambient conditions) | CuZn |
| Housing material (Ambient conditions) | PA |
| Rated voltage (III/3) (Material data) | 160 V |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection method (Key Commercial Data) | Screw connection |
| Tightening torque (Key Commercial Data) | 0.22 Nm ... 0.25 Nm |
| Ambient temperature (operation) (General) | -40 °C ... 100 °C |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 31+PE |
| Connection technology (Key Commercial Data) | Screw connection |
| Conductor cross section (Key Commercial Data) | 0.14 mm² ... 1.5 mm² |
| Contact carrier material (Ambient conditions) | PA |
| Contact surface material (Ambient conditions) | Nickel-plated |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 100 |
| Connection cross section AWG (Key Commercial Data) | 30 ... 14 |
| Conductor cross section solid max. (Key Commercial Data) | 1.5 mm² |
| Conductor cross section solid min. (Key Commercial Data) | 0.14 mm² |
| Conductor cross section flexible max. (Key Commercial Data) | 0.75 mm² |
| Conductor cross section flexible min. (Key Commercial Data) | 0.14 mm² |
| Stripping length of the individual wire (Key Commercial Data) | 7 mm |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
Contact insert set, Article family: VARIOCON, construction: VC3, housing material: PA, number of poles: 32, min. conductor cross-section: 0.14 mm², max. conductor cross-section: 1.5 mm², nominal volta
