VC-AR2/3M-S666-SET

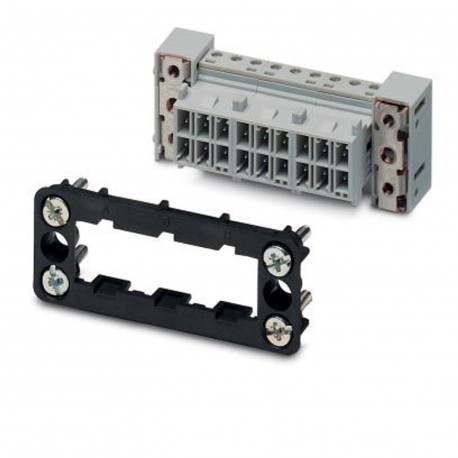

VC-AR2/3M-S666-SET 1607359 PHOENIX CONTACT Contact insert set
$28.52USD
394 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Type:VC2
Width:65.6 mm
Height:25.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Type | VC2 |
| Width | 65.6 mm |
| Height | 25.5 mm |
| Length | 34.6 mm |
| Series | VC-D |
| General | Connectors may only be connected/disconnected when under no load. |
| Material | Polyamide (Contact carriers) |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Product type | Contact insert |
| Rated current | 10 A |
| Product family | VARIOCON |
| Article revision | 09 |
| Contact material | CuZn |
| Housing material | PA |
| Tightening torque | 0.22 ... 0.25 Nm |
| Connection profile | 17+PE |
| Nominal current IN | 10 A |
| Nominal voltage UN | 250 V |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Nominal voltage ATD | 250 |
| Number of positions | 18 |
| Rated surge voltage | 4 kV |
| Rated voltage (II/2) | 400 V |
| Rated voltage (III/2) | 250 V |
| Rated voltage (III/3) | 250 V |
| Number of module slots | 3 |
| Contact carrier material | PA |
| Contact surface material | nickel-plated |
| Color of the housing part | gray |
| Insulating material group | I / CTI 600 |
| Single wire, cross section | 0.14 mm² 1.5 mm² |
| Insertion/withdrawal cycles | ≥ 100 |
| Rated surge voltage (III/3) | 4 kV |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Material for screw connection | 1.5523 (19MNB4) 10.9 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Conductor cross section flexible | 0.14 mm² ... 0.75 mm² |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 7 mm |
Product Description
Contact insert set, Article family: VARIOCON, construction: VC2, housing material: PA, number of poles: 18, minimum conductor section: 0.14 mm², max. conductor section: 1.5 mm², nominal voltage: 250,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
