In Stock Hot Product
VC-AR1/2M

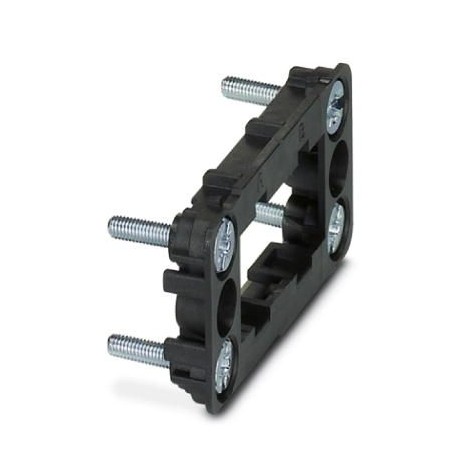

VC-AR1/2M 1852972 PHOENIX CONTACT Panel mounting frames
$0.00USD
3778 in stock
Key Specifications
GTIN:4017918133733
Orderkey:1852972
Catalog page:Page 25 (C-2-2013)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918133733 |
| Orderkey | 1852972 |
| Catalog page | Page 25 (C-2-2013) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85389099 |
| Minimum order quantity | 5 pc |
| Note (Key Commercial Data) | 2 x 1852862 VC-AF for each connector |
| Size (Key Commercial Data) | VC1 |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Halogen-free (Material data) | no |
| Weight per Piece (excluding packing) | 11.180 g |
| Housing material (Ambient conditions) | PA |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C |
| Flammability rating according to UL 94 (Material data) | V0 |
Product Description
Recessed frame, Article family: VARIOCON, construction: VC1, housing material: Polyamide. 2 x VC-AF 1852862 per plug-in connector
