VC-AMS 4

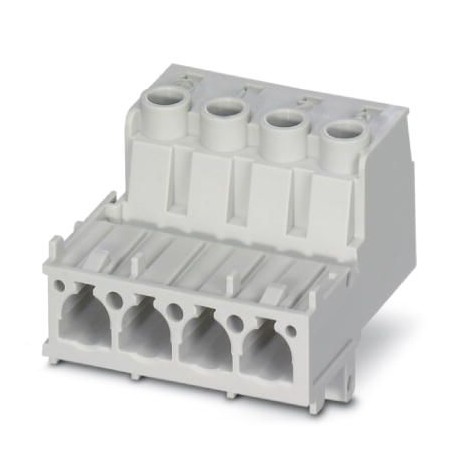

VC-AMS 4 1607745 PHOENIX CONTACT Contact insert
$12.89USD
815 in stock
Key Specifications
GTIN:4017918969196
Orderkey:1607745
Catalog page:Page 25 (C-2-2013)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918969196 |
| Orderkey | 1607745 |
| Catalog page | Page 25 (C-2-2013) |
| Packing unit | 5 pc |
| (Material data) | 70 A |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 5 pc |
| Note (Key Commercial Data) | Connectors may only be connected/disconnected when under no load. |
| Size (Key Commercial Data) | VC2 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Rated current (Material data) | 70 A |
| Rated surge voltage (Material data) | 6 kV |
| Weight per Piece (excluding packing) | 51.370 g |
| Contact material (Ambient conditions) | CuZn |
| Housing material (Ambient conditions) | PA 6.6 |
| Rated voltage (III/3) (Material data) | 690 V |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection method (Key Commercial Data) | Screw connection |
| Tightening torque (Key Commercial Data) | 1.2 Nm ... 1.8 Nm |
| Ambient temperature (operation) (General) | -40 °C ... 100 °C |
| Degree of pollution (Key Commercial Data) | 3 |
| Halogen-free (Electrical characteristics) | yes |
| Number of positions (Key Commercial Data) | 3+PE |
| Connection technology (Key Commercial Data) | Screw connection |
| No. of power contacts (Key Commercial Data) | 4 |
| Conductor cross section (Key Commercial Data) | 0.5 mm² ... 16 mm² |
| Contact carrier material (Ambient conditions) | PA |
| Contact surface material (Ambient conditions) | hard-silver plated |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 50 |
| Connection cross section AWG (Key Commercial Data) | 20 ... 5 |
| Conductor cross section AWG max. (Key Commercial Data) | 6 |
| Conductor cross section AWG min. (Key Commercial Data) | 20 |
| Connection in acc. with standard (Electrical characteristics) | CUL |
| Stripping length of the individual wire (Key Commercial Data) | 12 mm |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
Contact insert, Article family: VARIOCON, construction: VC2, housing material: PA 6.6, color: light gray, number of poles: 4, min. conductor section: 0.5 mm², max. conductor section: 16 mm², nominal v
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
