VC-AMLV 2

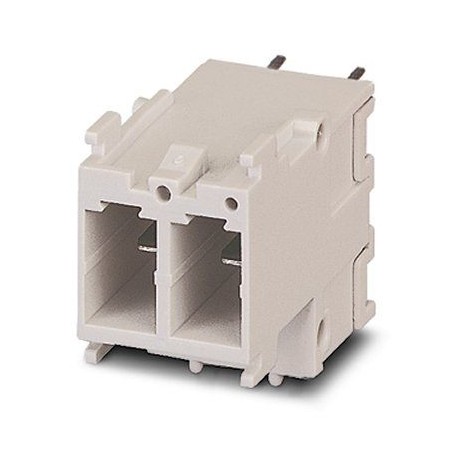

VC-AMLV 2 1884979 PHOENIX CONTACT Contact insert
$0.00USD
3385 in stock
Key Specifications
GTIN:4017918170790
Note:Made to Order (non-returnable)
Orderkey:1884979
Catalog page:Page 27 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918170790 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1884979 |
| Catalog page | Page 27 (C-2-2013) |
| Packing unit | 50 pc |
| (Material data) | 6 kV |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Rated current (Material data) | 20 A |
| Rated surge voltage (Material data) | 6 kV |
| Weight per Piece (excluding packing) | 5.460 g |
| Contact material (Ambient conditions) | CuZn |
| Housing material (Ambient conditions) | PA 6.6 |
| Rated voltage (III/3) (Material data) | 400 V |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Key Commercial Data) | Solder connection |
| Ambient temperature (operation) (General) | -40 °C ... 100 °C |
| Degree of pollution (Key Commercial Data) | 3 |
| Halogen-free (Electrical characteristics) | yes |
| Number of positions (Key Commercial Data) | 2 |
| Connection technology (Key Commercial Data) | Solder connection |
| Contact carrier material (Ambient conditions) | PA |
| Contact surface material (Ambient conditions) | Tin-plated |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 100 |
| Connection in acc. with standard (Electrical characteristics) | CUL |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
Contact insert, Family of items: VARIOCON, housing material: Polyamide, color: light gray, number of poles: 2, nominal voltage: 400, assigned current: 20 A, Connection type: Connection for printed cir
