VC-AMC 5

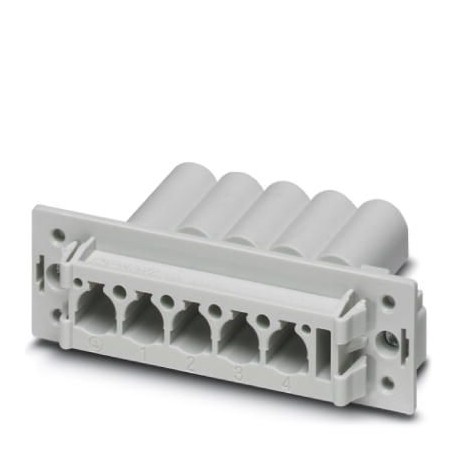

VC-AMC 5 1583878 PHOENIX CONTACT Contact carriers
$5.90USD
1725 in stock
Key Specifications
GTIN:4046356569637
Note:Made to Order (non-returnable)
Orderkey:1583878
Catalog page:Page 28 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356569637 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1583878 |
| Catalog page | Page 28 (C-2-2013) |
| Packing unit | 5 pc |
| (Material data) | 70 A |
| Country of origin | PL (Poland) |
| Custom tariff number | 85472000 |
| Minimum order quantity | 5 pc |
| Size (Key Commercial Data) | VC3 |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Rated current (Material data) | 70 A |
| Rated surge voltage (Material data) | 6 kV |
| Weight per Piece (excluding packing) | 27.840 g |
| Contact material (Ambient conditions) | CuZn |
| Housing material (Ambient conditions) | PA 6.6 |
| Rated voltage (III/3) (Material data) | 690 V |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Key Commercial Data) | Crimp connection |
| Ambient temperature (operation) (General) | -40 °C ... 100 °C |
| Degree of pollution (Key Commercial Data) | 3 |
| Halogen-free (Electrical characteristics) | yes |
| Number of positions (Key Commercial Data) | 4+PE |
| Connection technology (Key Commercial Data) | Crimp connection |
| Conductor cross section (Key Commercial Data) | 4 mm² ... 16 mm² |
| Contact carrier material (Ambient conditions) | PA |
| Contact surface material (Ambient conditions) | hard-silver plated |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 50 |
| Conductor cross section AWG max. (Key Commercial Data) | 6 |
| Conductor cross section AWG min. (Key Commercial Data) | 12 |
| Connection in acc. with standard (Electrical characteristics) | CUL |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
Contact support, Family of items: VARIOCON, construction: VC3, housing material: PA 6.6, color: light gray, number of poles: 5, nominal voltage: 690, assigned current: 70 A, Connection type: Crimp con
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
