V3T1/R0-4Q

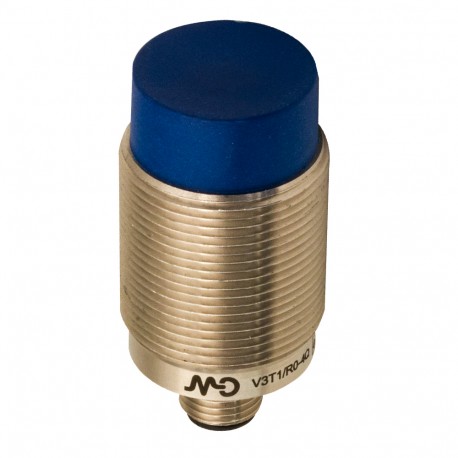

V3T1/R0-4Q MICRO DETECTORS Inductive sensor M30, unshielded, 1/2"-20UNF plug cable exit, NO (Vac)-NO/NC (Vdc)
$0.00USD
4805 in stock
Key Specifications
Weight:120g
Mounting:Non Schermato
Approvals:CEcULus
Dimensions:M30 x 1,5 / L = 60mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 120g |
| Mounting | Non Schermato |
| Approvals | CEcULus |
| Dimensions | M30 x 1,5 / L = 60mm |
| Hysteresis | 1 … 20% |
| Connections | 40Nm |
| Output type | MOSFET |
| Load current | 600mA/150ms (AC/DC) |
| Inrush current | 600mA/150ms (AC/DC) |
| LED indicators | LED giallo stato dell'uscita |
| Leakage current | 1mA (Vac) - 0,7mA (Vdc) |
| Output Function | NO (Vac) - NO/NC (Vdc) |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 54x54mm FE360 |
| Housing Material | Ottone nichelato |
| Correction Factor | rame: 0,55 / alluminio: 0,51 / ottone: 0,46 / acciaio INOX: 0,81 |
| EMC compatibility | ½" - 20UNF Plug |
| Operating Voltage | 20 - 250Vac - 50/60Hz - 20…250Vdc |
| Tightening torque | 5…140ma(Vac) - 5…200mA (Vdc) |
| Max ripple content | ≤10% |
| Operanting distance | 0…14,5mm |
| Output voltage drop | Vibrazioni IEC 60068-2-6 / Urti IEC 60068-2-27 |
| Switching frequency | 25Hz (AC) - 190Hz (DC) |
| Thermal drift of Sr | < 10% |
| Active Head Material | PA4T |
| Degree of protection | IP 67 (EN60529) |
| Supplied Accessories | 2 ghiere M30x1,5 |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | IEC 60947-5-2 |
| Nominal sensing distance | 18mm |
| Short-circuit protection | Si |
| 0,1µF @Vmax - 1µF @Vmin | 1µF @Vmax - 1µF @Vmin |
| Time delay before availability | 100ms |
| Impulsive Overvoltage Protection | Si |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
