UWV 95-F/S

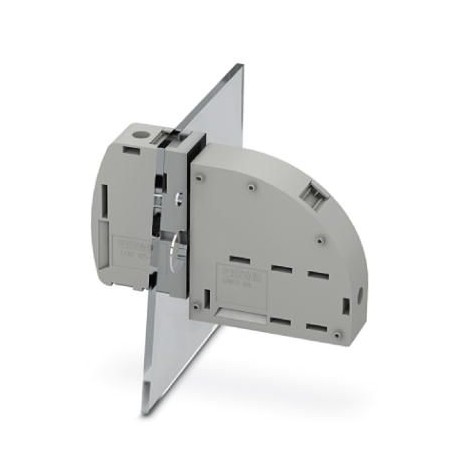

UWV 95-F/S 1713227 PHOENIX CONTACT Panel feed-through terminal block
$0.00USD
3505 in stock
Key Specifications
GTIN:4055626309606
Note:Made to Order (non-returnable)
Orderkey:1713227
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626309606 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1713227 |
| Packing unit | 10 pc |
| Pitch (General) | 25 mm |
| Width (General) | 25 mm |
| Country of origin | CN (China) |
| (Connection data) | IEC 60947-7-1 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Plate thickness (General) | 1 mm ... 5 mm |
| Screw thread (Dimensions) | M8 |
| Color (Key Commercial Data) | gray |
| Connection side (Dimensions) | inside |
| Stripping length (Dimensions) | 27 mm |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 12 Nm |
| Tightening torque, min (Dimensions) | 10 Nm |
| Weight per Piece (excluding packing) | 187.000 g |
| Internal cylindrical gage (Dimensions) | A12 / B12 |
| Nominal current IN (Key Commercial Data) | 232 A |
| Nominal voltage UN (Key Commercial Data) | 1000 V |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 1 |
| Maximum load current (Key Commercial Data) | 232 A |
| Nominal cross section (Key Commercial Data) | 95 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section solid max. (Dimensions) | 95 mm² |
| Conductor cross section solid min. (Dimensions) | 25 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 95 mm² |
| Conductor cross section flexible min. (Dimensions) | 35 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Ambient temperature (assembly) (Key Commercial Data) | -5 °C ... 100 °C |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C (Depending on the current carrying capacity/derating curve) |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| 2 conductors with same cross section, solid max. (Dimensions) | 35 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 16 mm² |
| Ambient temperature (storage/transport) (Key Commercial Data) | -40 °C ... 70 °C |
| 2 conductors with same cross section, stranded max. (Dimensions) | 35 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 95 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 95 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 35 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 16 mm² |
Product Description
Wall terminal block, connection type: Screw connection with traction capsule, Screw connection with traction capsule, number of poles: 1, charging current: 232 A, conductor connection direction with r
