UTWE 6/9+1

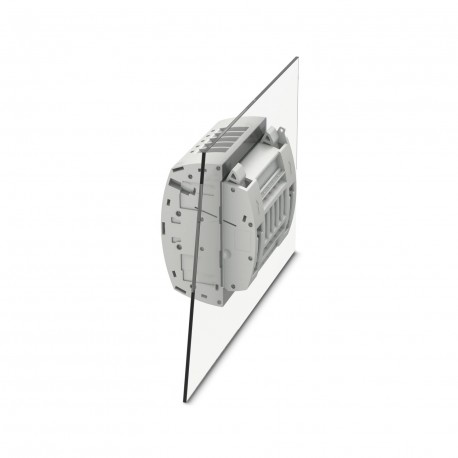

UTWE 6/9+1 1029711 PHOENIX CONTACT Test terminal strip
$0.00USD
4005 in stock
Key Specifications
GTIN:4055626531533
Note:Made to Order (non-returnable)
Orderkey:1029711
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626531533 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1029711 |
| Packing unit | 5 pc |
| Pitch (General) | 8.2 mm |
| Width (General) | 115 mm |
| Height (General) | 81 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 5 pc |
| Plate thickness (General) | 1 mm ... 4 mm |
| Screw thread (Dimensions) | M4 |
| Color (Key Commercial Data) | gray |
| Stripping length (Dimensions) | 10 mm |
| Connection method (Dimensions) | Screw connection |
| Mounting type (Connection data) | Wall mounting |
| Potentials (Key Commercial Data) | 10 |
| Plate thickness (Connection data) | 1 mm ... 4 mm |
| Tightening torque max (Dimensions) | 1.8 Nm |
| Tightening torque, min (Dimensions) | 1.5 Nm |
| Weight per Piece (excluding packing) | 22.220 g |
| Open side panel (Key Commercial Data) | No |
| Internal cylindrical gage (Dimensions) | A5 |
| Number of levels (Key Commercial Data) | 1 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Nominal current IN (Key Commercial Data) | 24 A |
| Nominal voltage UN (Key Commercial Data) | 400 V |
| Test surge voltage (Key Commercial Data) | 5 kV |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 10 |
| Rated surge voltage (Key Commercial Data) | 4 kV |
| Maximum load current (Key Commercial Data) | 30 A (with 10 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Connection in acc. with standard (Mounting) | IEC 60947-7-1 |
| Nominal cross section (Key Commercial Data) | 6 mm² |
| Number of connections (Key Commercial Data) | 20 |
| Conductor cross section AWG max. (Dimensions) | 8 |
| Conductor cross section AWG min. (Dimensions) | 24 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-1 |
| Terminal block mounting (Key Commercial Data) | 0.8 Nm ... 1 Nm |
| Conductor cross section solid max. (Dimensions) | 10 mm² |
| Conductor cross section solid min. (Dimensions) | 0.2 mm² |
| Insulating material group (Key Commercial Data) | I |
| Flammability rating according to UL 94 (Mounting) | V0 |
| Conductor cross section flexible max. (Dimensions) | 10 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.2 mm² |
| Max. AWG conductor cross section, flexible (Dimensions) | 8 |
| Min. AWG conductor cross section, flexible (Dimensions) | 24 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| 2 conductors with same cross section, solid max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.2 mm² |
| Max. tightening torque of the mounting screw: (Connection data) | 1 Nm |
| Min. tightening torque of the mounting screw: (Connection data) | 0.8 Nm |
| 2 conductors with same cross section, stranded max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.2 mm² |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 1.31 W |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
Product Description
Test pin strip, rated voltage: 400 V, rated current: 24 A, number of connections: 20, number of poles: 10, connection type: Screw connection, 1st floor, Sizing cross-section: 6 mm², cross-section: 0.2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
