UTWE 6-2/10

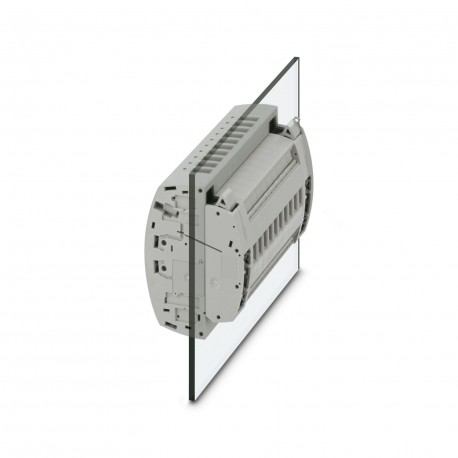

UTWE 6-2/10 3069658 PHOENIX CONTACT Test terminal strip
$0.00USD
3766 in stock
Key Specifications
:500 A
Color:gray (RAL 7042)
Depth:56.5 mm
Pitch:8.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 500 A | |
| Color | gray (RAL 7042) |
| Depth | 56.5 mm |
| Pitch | 8.2 mm |
| Width | 114.8 mm |
| Height | 81 mm |
| Result | Test passed |
| Spectrum | Service life test category 2, bogie-mounted |
| ASD level | 6.12 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| Potentials | 10 |
| Pulse shape | Half-sine |
| Revolutions | 135 |
| Acceleration | 3.12g |
| Product type | Test terminal strip |
| Screw thread | M4 |
| Mounting type | Wall mounting |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Number of rows | 1 |
| Rotation speed | 10 rpm |
| Shock duration | 18 ms |
| Nominal voltage | 400 V AC/DC |
| Open side panel | No |
| Plate thickness | 1 mm ... 4 mm |
| Test directions | X-, Y- and Z-axis |
| Stripping length | 12 mm |
| Time of exposure | 30 s |
| Cross section AWG | 24 ... 8 (converted acc. to IEC) |
| Tightening torque | 1.5 ... 1.8 Nm |
| Temperature cycles | 192 |
| Test surge voltage | 5 kV |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 10 |
| Rated surge voltage | 4 kV |
| Test force setpoint | 5 N |
| Maximum load current | 30 A (with 10 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 6 mm² |
| Number of connections | 20 |
| Test voltage setpoint | 4.8 kV |
| Test duration per axis | 5 h |
| Terminal block mounting | 0.8 Nm ... 1 Nm |
| Insulating material group | I |
| Internal cylindrical gage | A5 |
| Conductor cross section rigid | 0.2 mm² ... 10 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Conductor cross section/weight | 0.2 mm² / 0.2 kg |
| Number of shocks per direction | 3 |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Number of connections per level | 20 |
| Conductor cross section flexible | 0.2 mm² ... 10 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Short-time withstand current 4 mm² | 300 A |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 24 ... 8 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| 2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 1.31 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 6 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 6 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Product Description
Test pin strip, rated voltage: 400 V, number of connections: 20, number of poles: 10, connection type: Screw connection, 1st floor, Sizing section: 6 mm², cross-section: 0.2 mm² - 10 mm², mounting cla
